StiknTrak Beacon Gateway
LTE beacon & gateway — NB-IoT (Narrowband IoT) / LTE-M / GPS
Multi-function device that operates as an LTE beacon, BLE (Bluetooth Low Energy) beacon, or BLE-to-LTE gateway. Supports NB-IoT and LTE-M (Cat-M1) on 3GPP R13 with optional external GNSS for outdoor positioning. Up to 10-year battery life, IP67 sealed enclosure, accelerometer onboard, FOTA (Firmware Over-The-Air) updates via cloud or mobile app.
Basic specifications
- Model
- SNT-L3G
- Size
- 90 × 50 × 42 mm
- Weight
- 214 g
- Material
- ABS / PC
- Ingress
- IP67 (non-rechargeable) · IP65 (rechargeable)
- Working temperature
- −40 to +70 °C (non-rech.) · −30 to +70 °C (rech.)
- Working humidity
- 5–100 %RH (non-rech.) · 5–95 %RH (rech.)
- Battery
- ER26500 8500 mAh (non-rech.) · 3000 mAh polymer (rech.)
- Battery life
- Up to 10 years (non-rech.) · ~1 year per charge (rech.)
- SIM
- 1 × nano SIM
- Sensor
- Accelerometer (onboard)
- Indicator
- RGB LED (internal)
- Mounting
- Screws (4 × corner) + integrated mounting tab
- Protocols
- HTTP / HTTPS / MQTT / MQTT SSL / UDP / UDP AES
Technical specifications
- Bluetooth
- BLE 4.x · BLE 5.0
- BLE RF
- Tx −40 to +8 dBm (~100 m open area) · RX sensitivity −108 dBm @1 Mbps, 0.1 %BER
- BLE capability
- 8 simultaneous sub-device connections · scans ≥32 BLE devices
- Cellular
- NB-IoT and LTE-M (Cat-M1) on 3GPP R13
- LTE-M bands
- B1, B2, B3, B4, B5, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B66
- NB-IoT bands
- B1, B2, B3, B4, B5, B8, B12, B13, B17, B18, B20, B25, B26, B28, B66
- Optimal LTE range
- 800–960 MHz
- LTE RF
- Up to 23 dBm output · sensitivity −108 dBm (low band) / −107 dBm (mid band)
- GNSS (optional, external)
- GPS / GLONASS / BeiDou · 30 m accuracy · −148 / −162 / −160 dBm (acquisition / tracking / re-acq.)
- Updates
- FOTA via cloud and iOS / Android apps · J-Link port for programming
- Compatibility
- iOS 8.0+ · Android 4.3+ · BLE 4.x / 5.0 · Cloud over MQTT / HTTP / UDP
StiknTrak Asset Tracker Gateway
4G LTE asset gateway — GNSS / WiFi / BLE 5.0
Rechargeable 4G LTE Cat-1 asset tracker and BLE gateway with onboard GNSS, WiFi-based indoor positioning, and built-in temperature, humidity, light and motion sensors. Designed for fleet management, asset tracking, insurance telematics and stolen-vehicle recovery — anywhere a mobile, rechargeable gateway with rich sensors and external BLE relay is needed.
General
- Model
- SNT-GT110
- Network
- 4G LTE Cat-1 bis with 2G fallback
- Enclosure
- ABS · IP67 rugged
- Dimensions
- 123 × 68 × 11 mm
- Weight
- 106 g
- Supply voltage
- 3.7 V rechargeable
- Backup battery
- 2500 mAh Li-ion polymer · USB 5.0 V charging
- Stand-by current
- ≤80 µA
- Power consumption
- <80 µA sleep · <80 mA active
- Battery life
- ~1.5 years @ 1 report per day
- Firmware update
- USB Type-C interface · OTA
- Operating temperature
- −20 to +65 °C
Wireless & positioning
- Cellular (EMEA)
- LTE FDD B1 / B3 / B5 / B7 / B8 / B20 · GSM 850 / 900 / 1800 / 1900 MHz
- Cellular (LATAM)
- LTE FDD B2 / B3 / B4 / B5 / B7 / B8 / B28 / B66 · GSM 850 / 900 / 1800 / 1900 MHz
- Bluetooth
- BLE 5.0 · supports external BLE sensors
- WiFi
- 2.4 GHz (indoor location)
- LoRa
- 915 MHz (optional)
- Data protocols
- TCP · MQTT
- Platforms
- Wialon · Flespi · Traccar · RedGPS
- GNSS
- GPS L1 C/A · GLONASS L1 · BDS B1I · QZSS L1 C/A · 32 channels @ 1 Hz · GPS+GLONASS concurrent (default)
- Tracking sensitivity
- Acquisition −147 dBm · reacquisition −162 dBm · tracking −161 dBm
- TTFF (−130 dBm)
- Cold start <30 s · hot start <2 s · reacquisition <1 s · A-GPS supported
- Position accuracy
- <2.5 m CEP autonomous (50 % static, 24 h, −130 dBm, >6 sats)
- Location sources
- GNSS · Cell ID · WiFi
Onboard sensors & I/O
- Connectors
- 1 × USB Type-C · 1 × nano SIM
- Antennas
- Cellular: internal · GNSS: internal (GPS / GLONASS / BeiDou / QZSS)
- LEDs
- 2 × LED — power light, status light
- Memory
- 16,000 records @ 43 byte
- Accelerometer
- Internal 3-axis · ±2g / ±4g / ±8g / ±16g · 25 Hz ODR
- Light sensor
- 1–1000 (adjustable levels)
- Temp / humidity
- ±0.5 °C accuracy (−20 to +65 °C) · ±3 %RH (+10 to +70 °C)
- Hardware protection
- Anti-reverse power supply · ESD · surge · over-voltage
SNT-DISP — Disposable LTE / LoRaWAN Gateway
Single-use NB-IoT · CAT-M · LoRaWAN · GNSS · BLE 5.0
Ultra-thin disposable badge gateway for one-shot deployments — pharma cold-chain shipments, lone-worker safety patrols, event credentials and high-value parcel chaperoning. Combines GNSS, Bluetooth Low Energy, NB-IoT and CAT-M in a 97 × 62 × 7 mm ABS card with a built-in accelerometer for autonomous motion-based reporting. Approximately 1,000 GNSS fixes or 2,200 BLE positioning reports per device, then dispose responsibly.
General
- Model
- SNT-DISP
- Form factor
- Disposable badge / lanyard tracker
- Housing material
- ABS
- Dimensions
- 97 × 62 × 7 mm
- Switch
- Power button (4 s press to turn on / off)
- SIM
- Nano SIM or eSIM
- Operating temperature
- −1 to +60 °C
- Storage temperature
- −40 to +85 °C
- FOTA
- Firmware over Bluetooth
Cellular & LPWA
- CAT-M
- B1 / B2 / B3 / B4 / B5 / B8 / B12 / B13 / B18 / B19 / B20 / B25 / B26 / B27 / B28 / B66 / B85
- NB-IoT
- B1 / B2 / B3 / B4 / B5 / B8 / B12 / B13 / B18 / B19 / B20 / B25 / B28 / B66 / B71 / B85
- LoRaWAN
- Optional regional bands — AS923 / AU915 / EU868 / US915
- Protocol
- MQTT (Lansitec / private MQTT server)
Positioning
- GNSS
- GPS · BDS · GALILEO · GLONASS · QZSS · SBAS (WAAS / EGNOS / GAGAN / MSAS)
- Accuracy
- 2.5 m
- Cold start
- 30 – 120 s
- GNSS antenna
- 18 × 18 mm ceramic patch
- Bluetooth
- BLE 5.0 · iBeacon
- BLE TX power
- −20 / −16 / −12 / −8 / −4 / 0 / 4 dBm
- BLE sensitivity
- −96 dBm
- BLE positioning
- 3-second receive window · reports top-3 beacons by RSSI · server-side triangulation
Power & reporting
- Max current
- 160 mA
- Standby current
- 26 µA
- Battery budget
- ~1,000 GNSS fixes · ~2,200 BLE positioning reports
- Lifetime
- > 2 weeks (BLE position interval 5 min, GNSS off)
- Report modes
- Periodic · Autonomous (motion-aware) · On-demand (downlink trigger)
- Heartbeat
- Configurable in 30 s multiples · carries device health
- GNSS timeout
- 3 minutes per cycle
- Sensors
- 3-axis accelerometer (motion / shock) · temperature

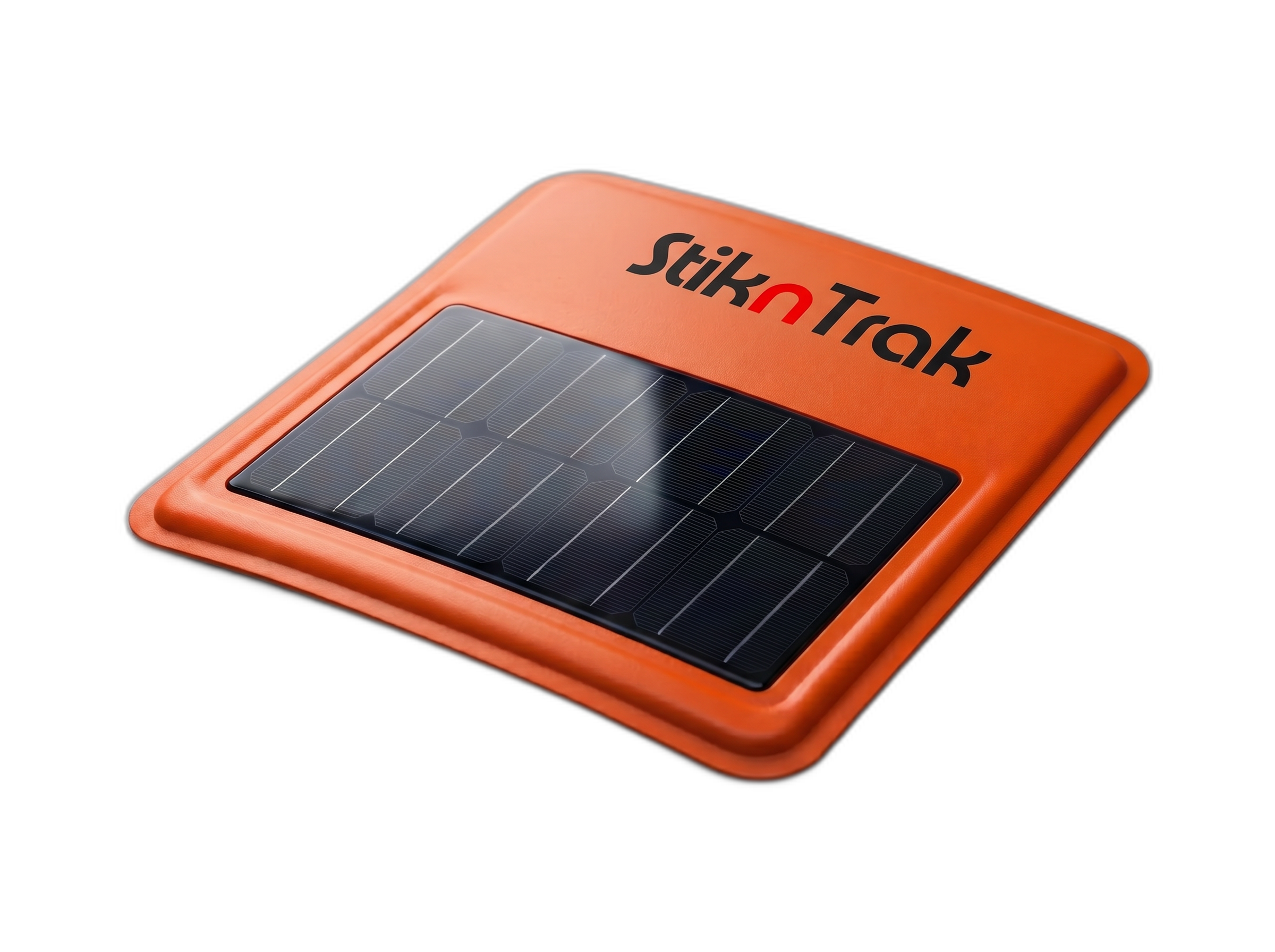

StiknTrak Hybrid Satellite Gateway
Hybrid satellite + global LTE Cat 1 · multi-constellation GNSS · remote asset backhaul
The SNT-SAT is a hybrid remote-communications gateway built around the Quectel EG21-G cellular modem. It provides worldwide LTE Cat 1 connectivity with UMTS/HSPA+ and GSM/GPRS/EDGE fallback, plus optional multi-constellation GNSS for dependable positioning. The EG21-G supports the terrestrial component of the SNT-SAT architecture, while a project-specific satellite or NTN subsystem can be integrated for remote agriculture, cold-chain logistics, maritime routes, mining and other deployments beyond reliable terrestrial coverage.
Core platform
- Model
- SNT-SAT
- Cellular modem
- Quectel EG21-G
- Cellular standard
- LTE Cat 1 · 3GPP Release 11
- Worldwide networks
- LTE · UMTS/HSPA+ · GSM/GPRS/EDGE
- LTE throughput
- Up to 10 Mbps downlink · 5 Mbps uplink
- Positioning
- Optional GPS · GLONASS · BeiDou · Galileo · QZSS
- Architecture
- Hybrid terrestrial backhaul with project-specific satellite / NTN integration
- Applications
- Remote agriculture · cold chain · global logistics · maritime · mining · remote assets
EG21-G modem specifications
- Form factor
- LGA module
- Module dimensions
- 29.0 × 32.0 × 2.4 mm
- Module weight
- Approximately 4.9 g
- Operating temperature
- −40 to +85 °C extended range
- Link reliability
- MIMO support for improved data rate and connection reliability
- Interface
- USB 2.0 high-speed
- Firmware
- DFOTA supported
- Additional functions
- eCall · DTMF · broad internet-protocol and industry-standard interface support
Deployment value
- Terrestrial coverage
- Global LTE with legacy 3G and 2G fallback where available
- Remote coverage
- Satellite / NTN subsystem configurable to the deployment and target market
- Data backhaul
- Sensor, location and event data delivered to SAVP
- Use model
- Fixed, vehicle, container or remote-site gateway configurations
