Compact BLE sensing devices for unit-level visibility: disposable temperature logging across the transport leg, plus precise last-metre asset location using visual and audible cues.
\n
\n
SNS-S05T
SNS-S05T
StiknSense Temperature Logger
One Way · disposable cold-chain logger — 60,000 readings, 350 m long-range BLE
A low-cost, lightweight disposable BLE 5.0 temperature logger that captures temperature data during storage and the entire transport leg, while broadcasting real-time location and temperature to nearby phones, trackers and gateways. Stores up to 60,000 sensor readings on board and exports historical data and analysis reports in Excel via the configuration app. Ideal for pharmaceutical cold chain, food shipments and high-value temperature-sensitive logistics.
Two views

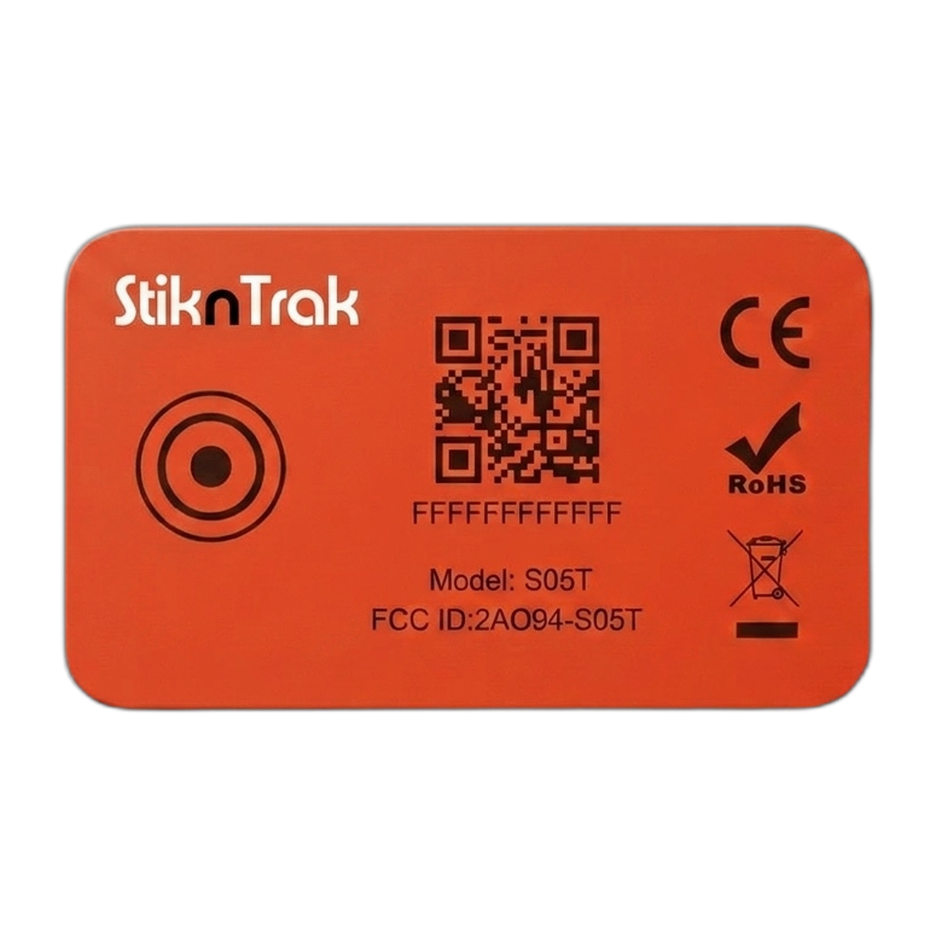

Top view
4.7 mm flat profile
Physical & connectivity
Model
SNS-S05T (S05T platform)
Bluetooth
BLE 5.0 · Silicon Labs MCU (microcontroller unit)
Max Tx power
+6 dBm
Range — legacy
150 m (open area)
Range — long-range PHY
350 m (Coded PHY advertising)
Dimensions
49.6 × 28.8 × 4.7 mm
Material
EVA · PVC
Colour
Orange
Ingress
IP67
Installation
Sticker (peel-and-place adhesive)
Sensing, storage & battery
Temperature accuracy
±0.2 °C (0 to +60 °C) · ±0.2 to ±0.5 °C (−30 to 0 °C)
Operating temperature
−30 to +60 °C
Humidity sensor
Not fitted
Accelerometer
Optional
LED indicators
1 × green + 1 × red (status, alerts, low battery)
Onboard storage
512 KB flash — up to 60,000 temperature readings
Battery
220 mAh · non-replaceable
Battery life
2 years (default settings¹)
Certifications
FCC · CE · RoHS · REACH
¹ Default lifetime estimated at 25 °C with 0 dBm Tx power, 3 s ADV interval, 10 s sampling interval, accelerometer disabled.
StiknLocate is a compact, coin-sized BLE asset tag for quickly finding equipment, pallets, crates and other valuable items within a facility or local area. The app guides the operator toward the selected tag, then activates its high-brightness LED—and optional buzzer—for precise visual and audible identification.
Its high-performance antenna is designed for strong, interference-resistant broadcasting indoors and outdoors. An optional temperature logger adds environmental monitoring for cold-chain assets and climate-sensitive medical supplies.
Locate on demand
Select a nearby asset in the mobile app, use signal strength to approach it, then trigger the LED or optional buzzer.
Built for reuse
Replaceable CR2032 coin battery, integrated accelerometer and 3M adhesive installation.
Bluetooth
BLE 5.0
Broadcast range
Up to 230 m in unobstructed open space¹
Dimensions
30 mm diameter × 8 mm
Weight
6.2 g including battery
Location cues
High-brightness LED · optional buzzer
Sensors
3-axis accelerometer · optional temperature logger
Battery
Replaceable CR2032 · approximately 9 months at default settings²
Operating range
−20 °C to +60 °C
Certifications
FCC · CE · REACH · RoHS
¹ Actual range varies with building materials, shelving, interference and device placement. ² Default brochure settings: one active slot, 1,000 ms advertising interval, 0 dBm transmit power and 1-second sensor sampling.

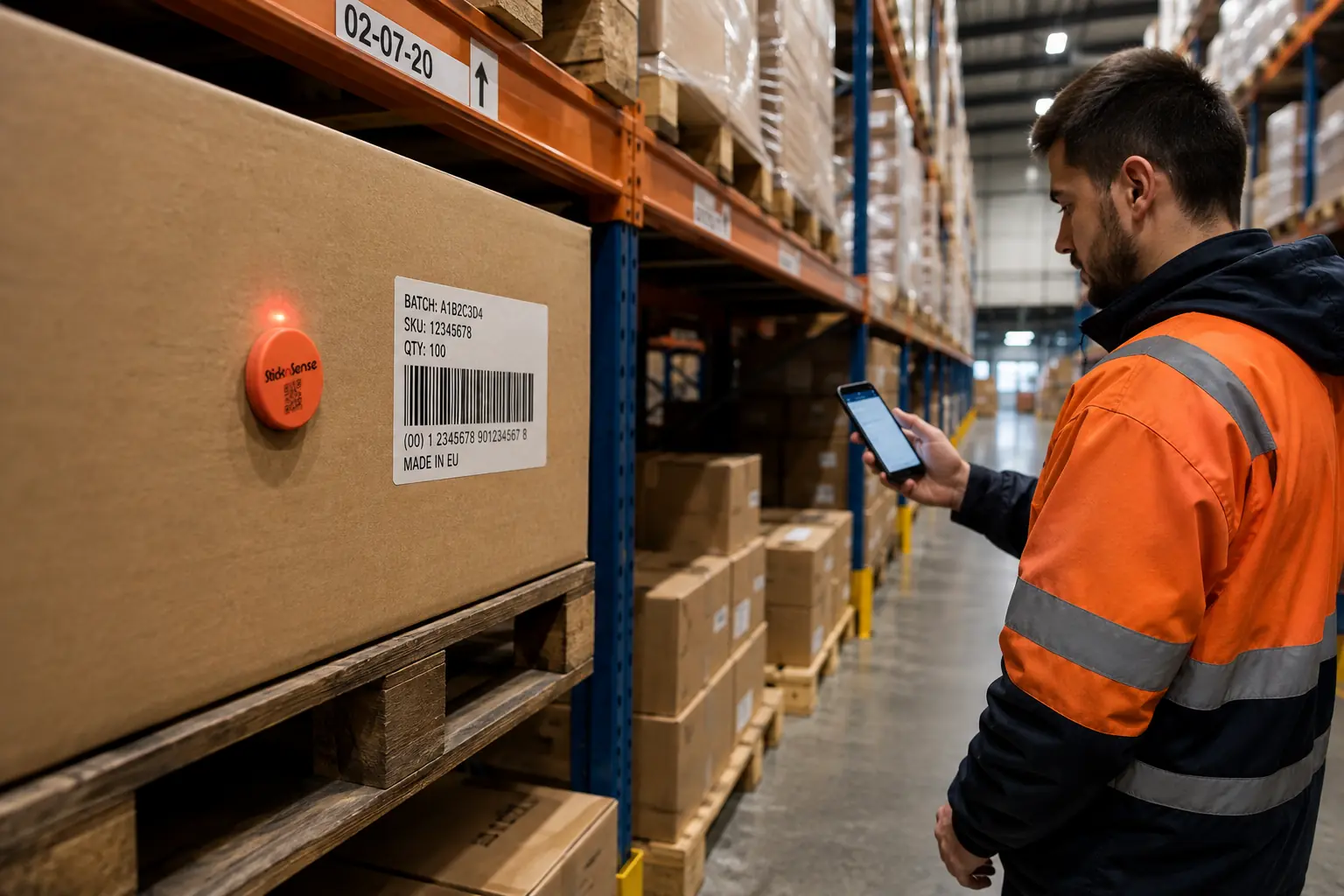

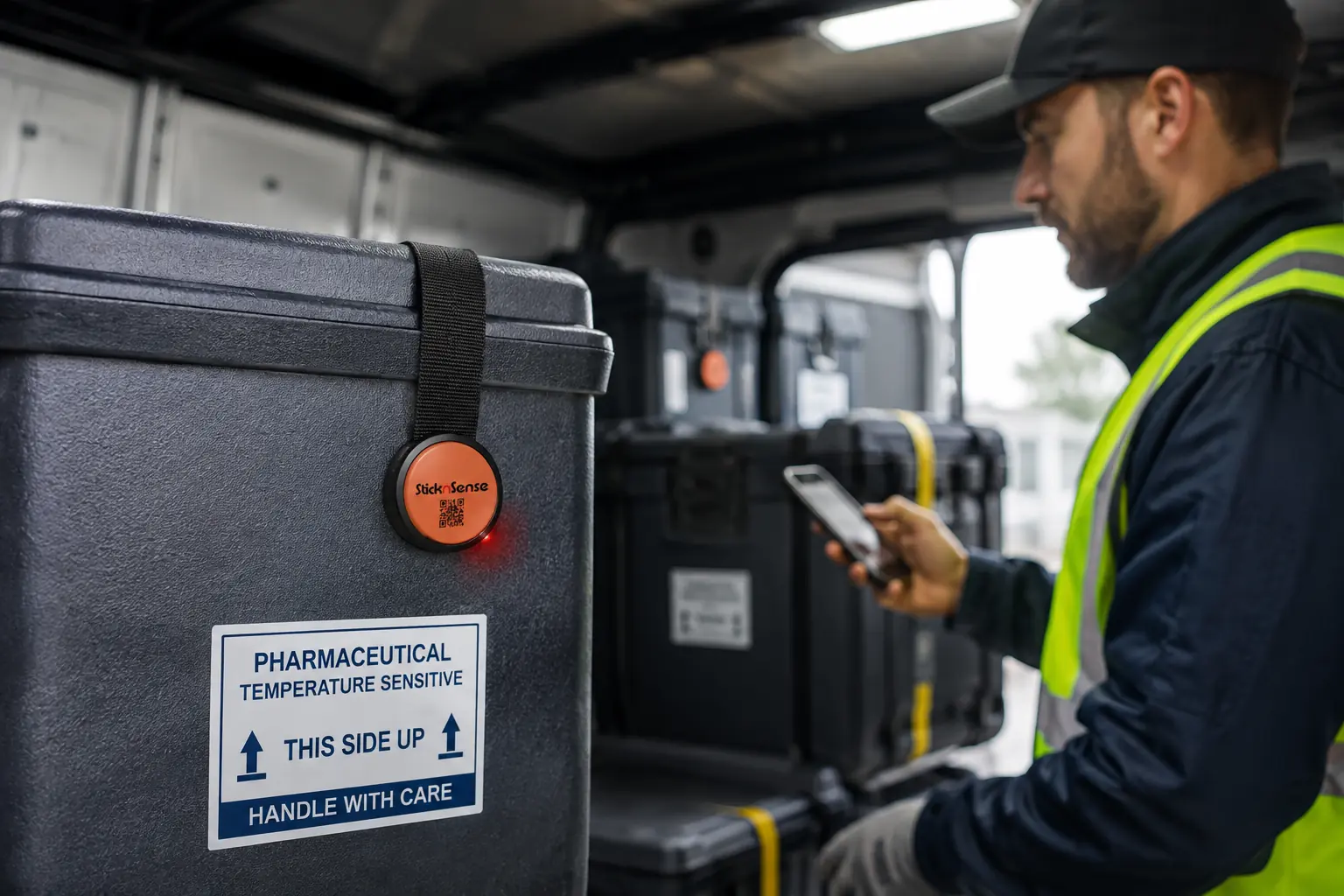

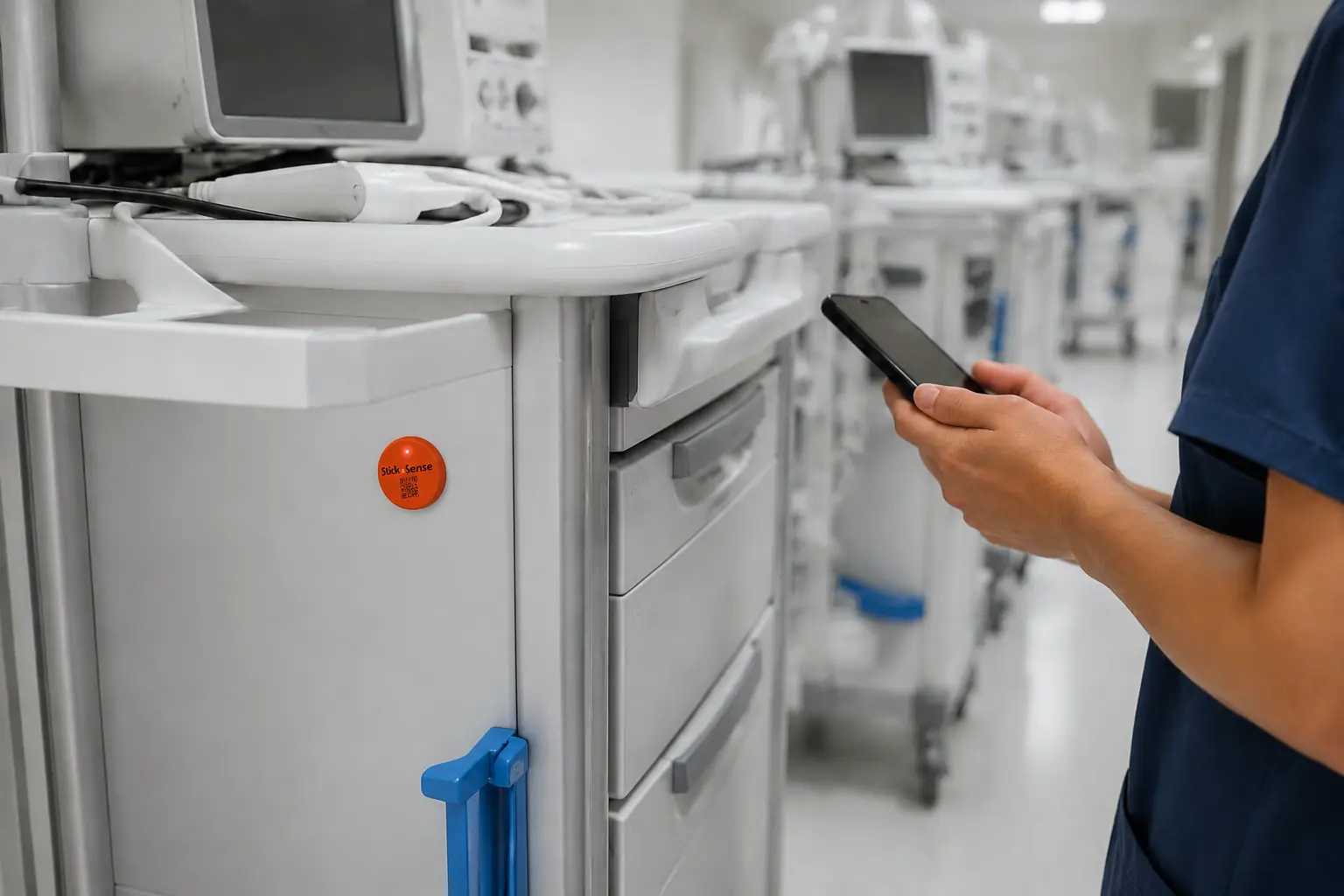

Healthcare equipmentIdentify the correct trolley or mobile device in crowded clinical storage areas.Warehouse inventoryFind the selected carton, pallet or asset without searching every storage position.Reusable logistics casesLocate high-value shippers awaiting collection, handover or return.
Healthcare
Locate medical equipment and temperature-sensitive supplies in busy hospitals and clinics.
Warehousing
Find pallets, crates, tools and assets without searching every aisle or storage zone.
Logistics
Identify high-value shippers awaiting collection, handover or return.
Retail
Locate trolleys, reusable equipment and other mobile assets across stores and car parks.
Why disposable temperature logging matters
One logger per shipment. One audit trail per leg.
60,000 readings on board
The SNS-S05T captures temperature throughout storage and the entire transport leg, even with no infrastructure nearby. Data syncs back via any passing phone, tracker or gateway.
Disposable economics
Low-cost, lightweight, customisable. Target sub-dollar volume pricing makes per-shipment temperature monitoring financially viable for the first time.
No external infrastructure
Devices broadcast over BLE 5.0 — 350 m long-range. Phones and gateways already in the workflow forward data to SAVP (StiknTrak Asset Visualisation Platform) — no SIMs, no GPS, no Wi-Fi.
Deployment
Three ways to deploy a StiknSense
StiknSense was designed to drop into existing handling workflows without retraining staff or modifying packaging. Pick the method that fits the asset, the lane and the people who will handle it.
Method 01

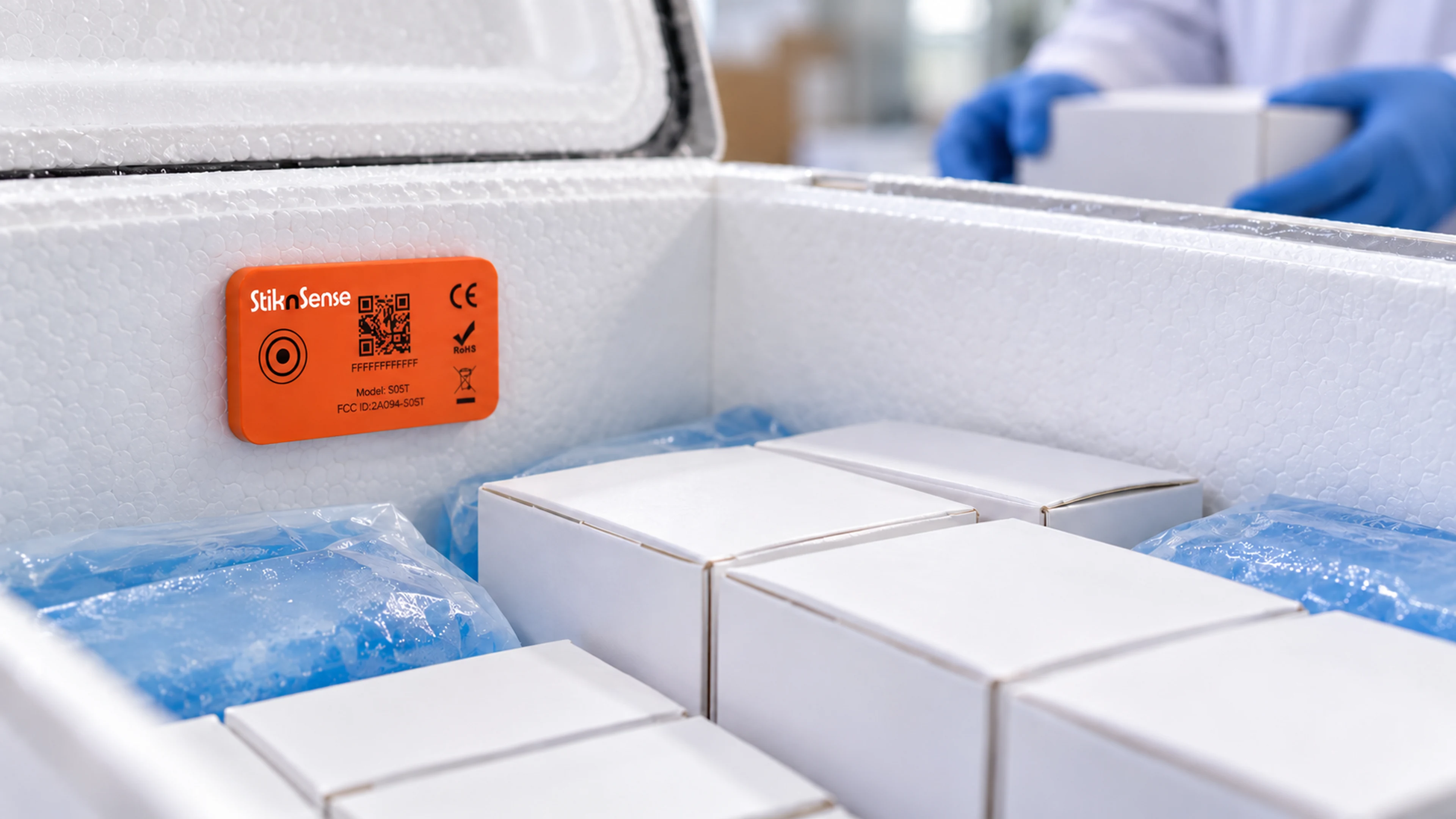

Inside the package
Drop a single StiknSense unit inside a carton, tote, ULD (Unit Load Device) or returnable container. The device records temperature and humidity from the moment it's sealed and broadcasts every reading over BLE 5.0. Phones, trackers and gateways anywhere in the lane forward the data to SAVP — no infrastructure required at origin or destination.
+ Best for sealed cartons & totes
+ No external mount required
+ True in-box conditions
Method 02

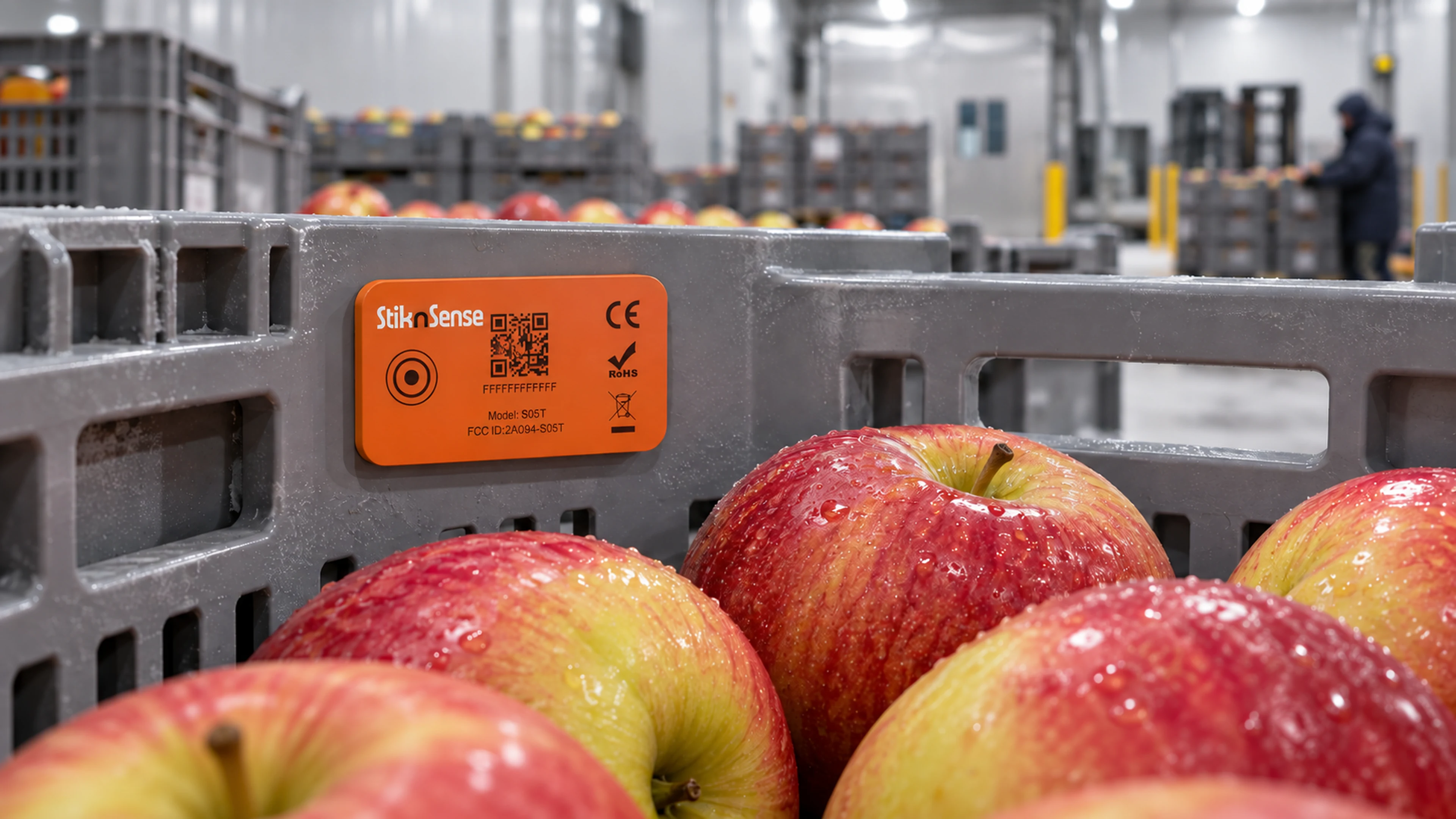

Adhered to the outside
Stick a StiknSense to the outside of a container, crate or pallet using its peel-and-stick adhesive backing. Ideal where the asset can't be opened in transit, or where a single device needs to track ambient conditions across an entire load. Same data, same SAVP visualisation — just a different mounting surface.
+ Best for sealed or reusable containers
+ No tools, no integration
+ Reads ambient lane conditions
Method 03 · Recommended

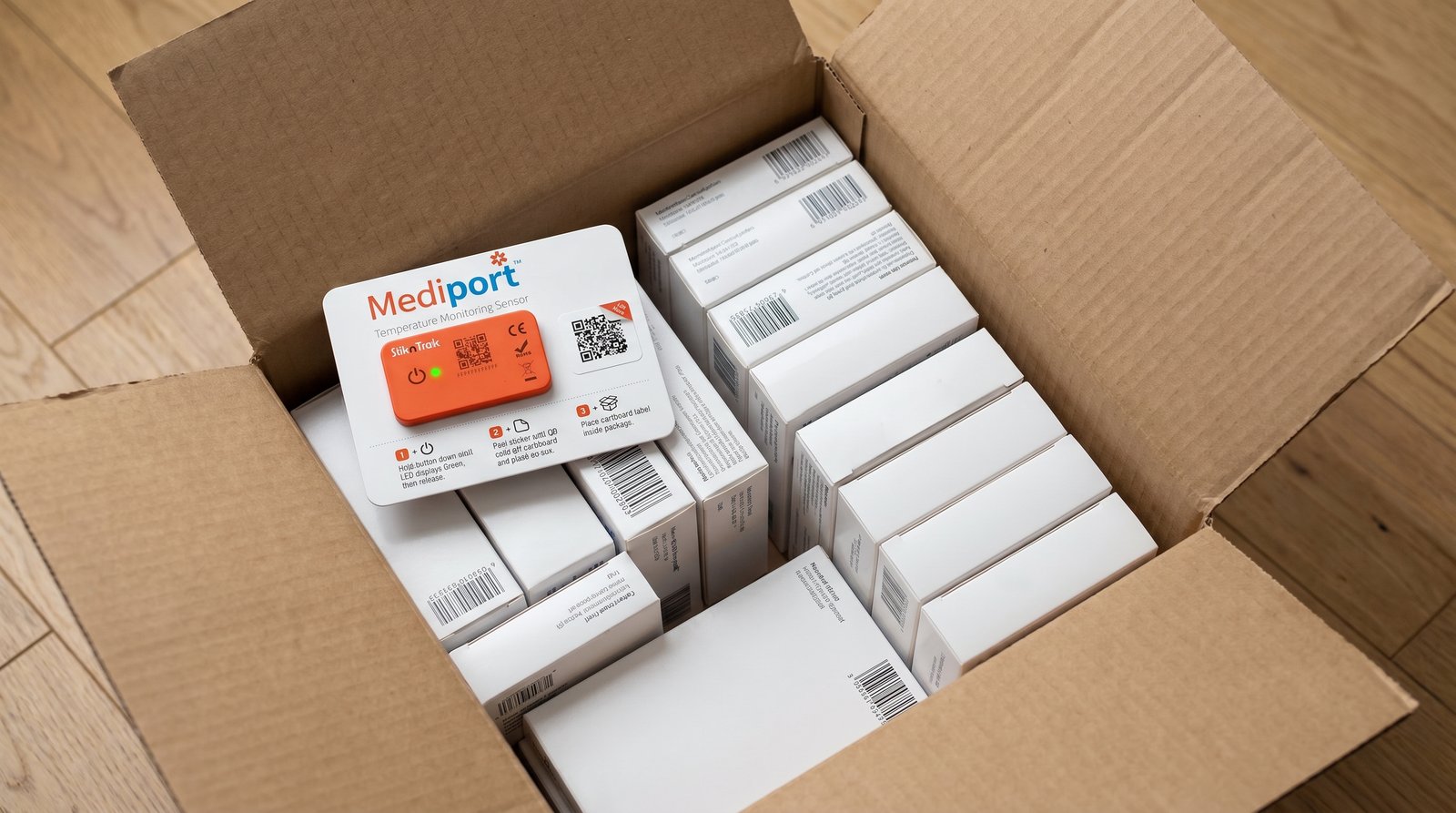

A5–A7 instruction card
Attach the StiknSense to a printed A5 or A7 card and place the assembly inside a box of pharmaceuticals, fresh produce or other temperature-critical goods. The card carries clear handling instructions, your branding, and a return path — turning a sensor into a guided, end-to-end deployment.
Temperature and humidity are recorded continuously and transmitted in near real time to the SAVP platform for visualisation, alerting and action when thresholds are breached.
01 Clear instructions for the receiver
02 Customer branding & chain-of-custody
03 Return path printed on the card
04 Live telemetry to SAVP for alerting
Method 03 · End-to-end
From dispatch to receipt — the full journey, plus a small-parcel option
A printed Mediport-branded card carries the StiknSense, your branding and clear handling instructions. The sender starts the recording and sticks the QR on the outside of the box; the receiver stops the recording and reads the LED on arrival. Card and device are returned for re-use on the next shipment.
Click any image to enlarge · tap LISTEN to hear the step.

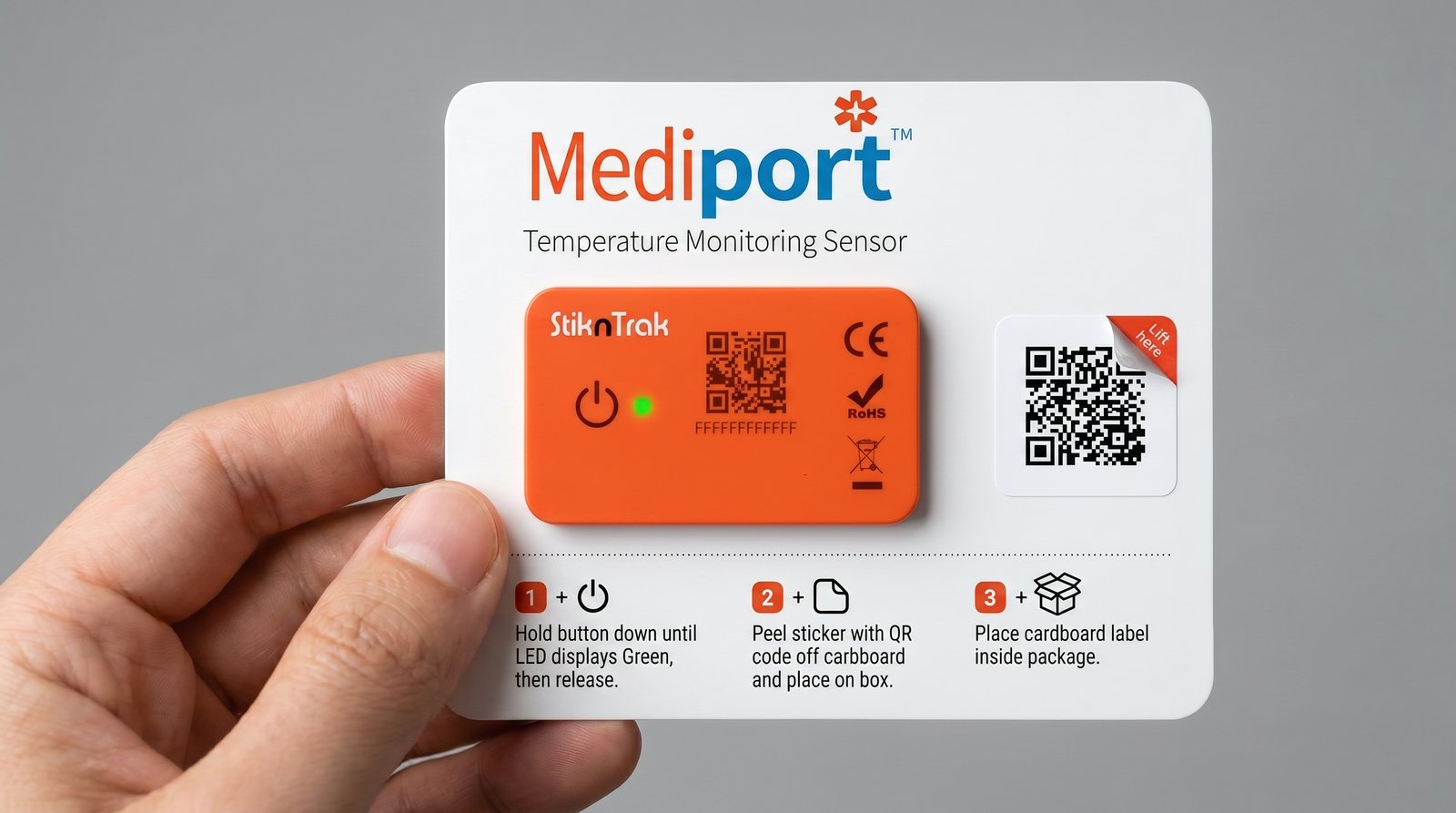

Meet the StiknSense
The compact orange device on the front of the card captures temperature and humidity. The button starts and stops recording; the LED on top shows the current status at a glance.

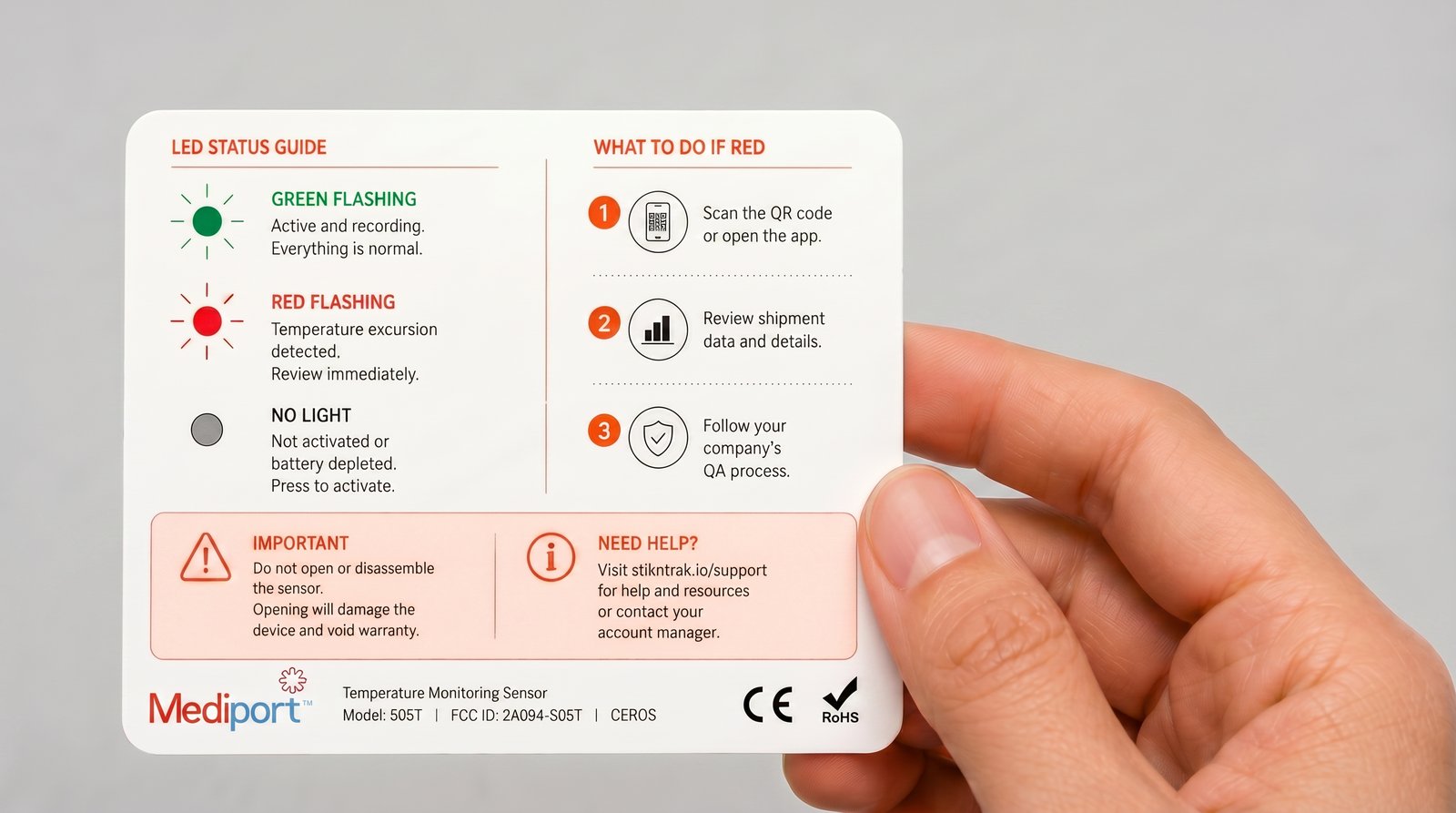

Turn the card over
The back carries clear instructions for sender and receiver — how to operate the device and how to interpret each LED colour. Everything you need to use StiknSense confidently is right there on the card.

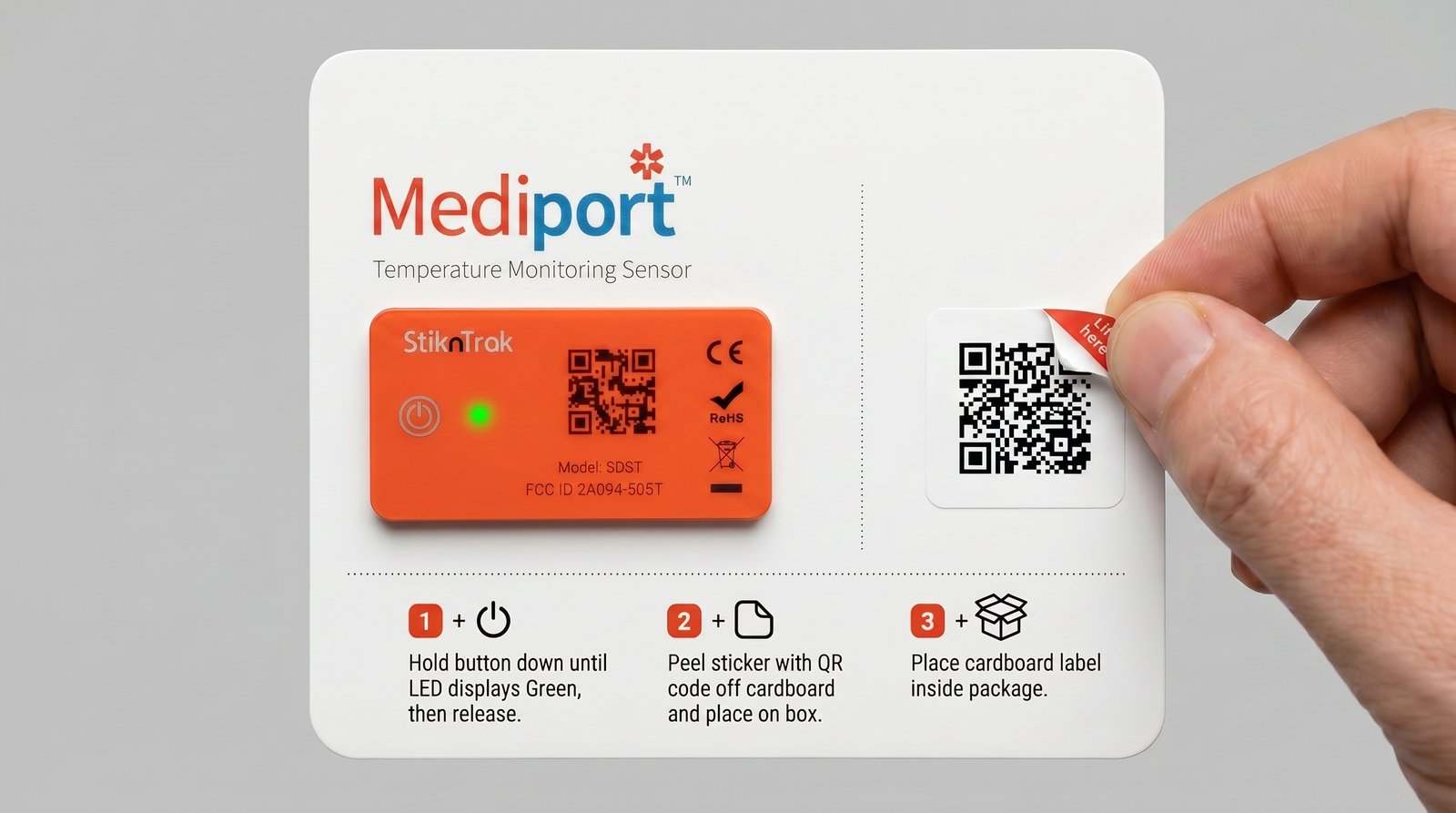

Activate & peel the QR
The sender presses the button to activate the StiknSense — recording starts immediately. Then lift the red corner tab and peel the QR sticker off the front of the card.
Stick QR on the box
Apply the QR sticker to the outside of the carton. Anyone can scan it with a web app to pull every reading sent to SAVP — no need to open the box to know what's happening inside.
Long-press to stop
On receipt, the receiver opens the carton and long-presses the button on the StiknSense to stop recording. The journey log is now closed.
Read the LED outcome
Red — a temperature excursion occurred during shipping; follow the remedial action printed on the back of the card. Green — everything stayed within specification; set the device aside, ready for return to the supplier.

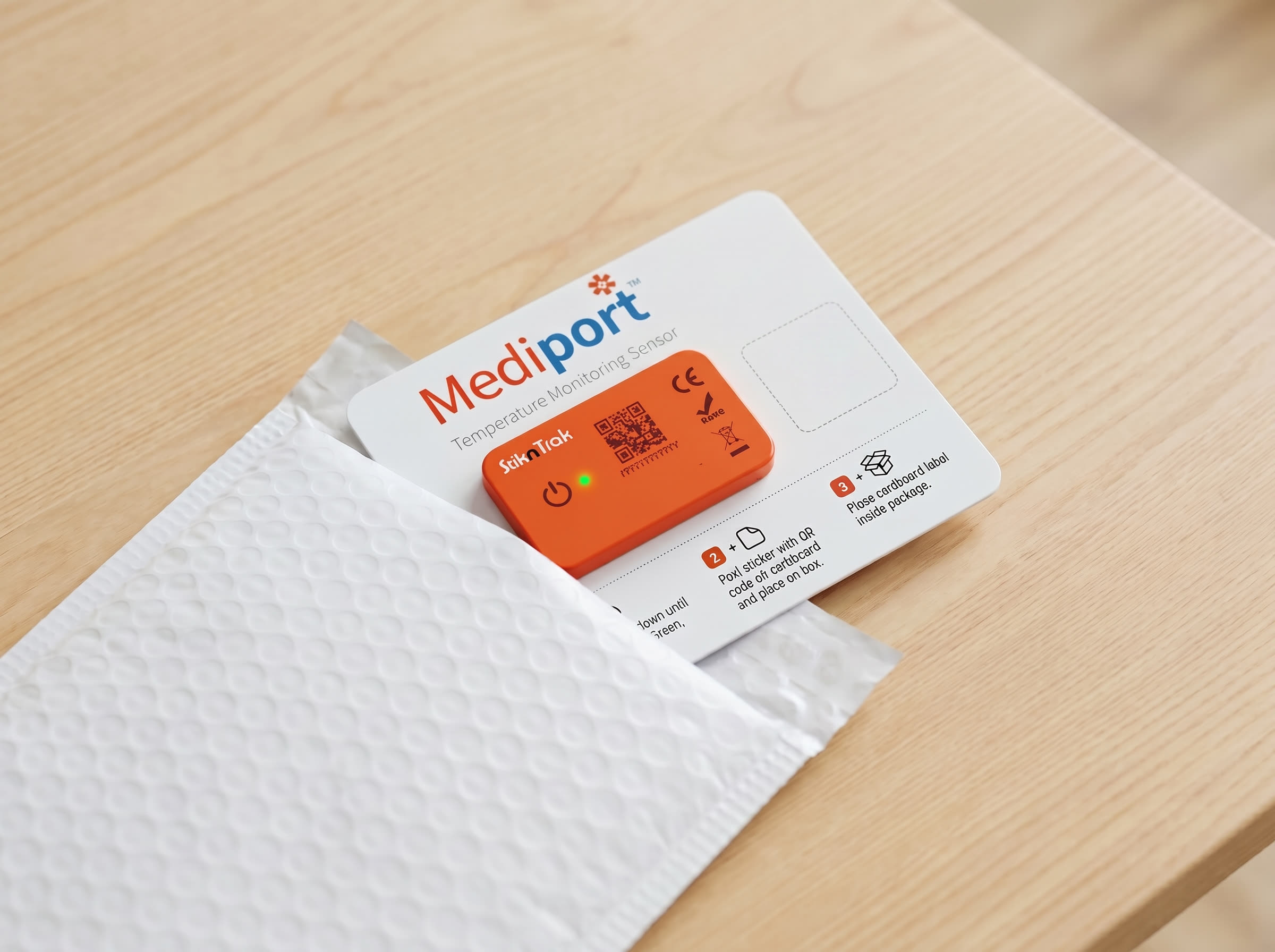

Return to supplier
Slide the StiknSense card into a padded mailer and send it back to the supplier — typically done in bulk, with cards collected from multiple shipments and returned together for re-use.
Every method feeds the same backbone: continuous T&H telemetry into SAVP, where dashboards, alerts and exception workflows turn raw readings into action.
