StiknTrak family · Tracking

Trackers & beacons
for every form of transport.

Ultra-thin SNT-UF101 labels, ruggedised SNT-FM36 long-life trackers and SNT-LOC last-metre asset locators. One technology platform, multiple device formats and applications. For dedicated LTE gateways, see the Gateways family.

SNT-UF101

SNT-UF101

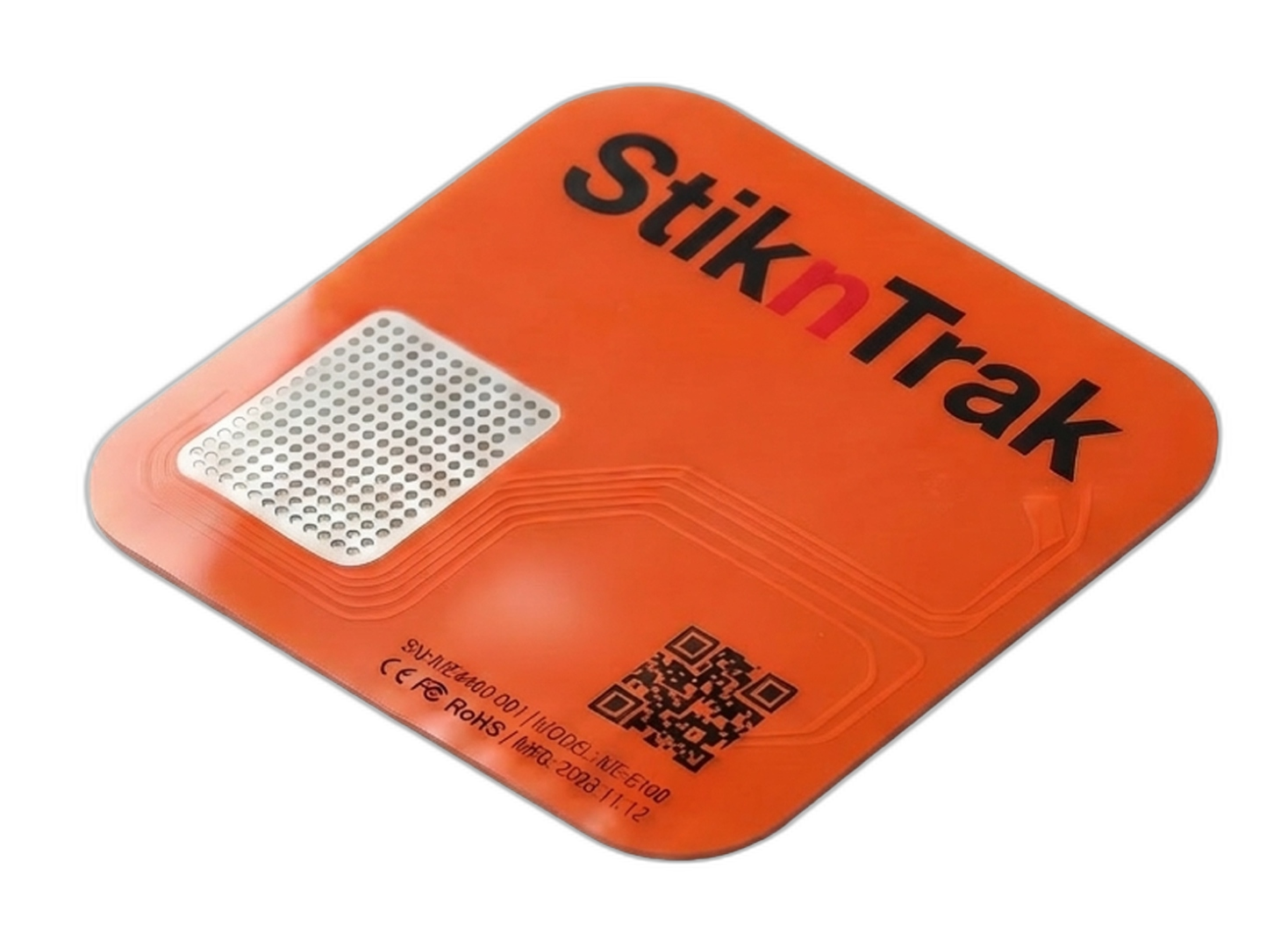

StiknTrak Ultra-Thin Paper Tag

One Way · single-use disposable — 2.3 mm flat label, near real-time location without infrastructure

A lightweight, eco-friendly BLE asset tag with a zinc-based disposable paper battery and an ultra-thin, flexible PVC body. Designed for tracking high-value assets like passive pharmaceutical shippers, returnable packaging and document folders — near real-time location without SIM cards, GPS chips or external infrastructure. A conductive adhesive power-off feature lets handlers manually disconnect the battery to conserve power during storage or transit, making the SNT-UF101 a low-cost, scalable choice for smart, sustainable supply chains.

SNT-UF101 in action

StiknTrak SNT-UF101 ultra-thin paper tags adhered to a wooden warehouse crate and a grey returnable transport tote on a strapped pallet — Crates & returnable totes

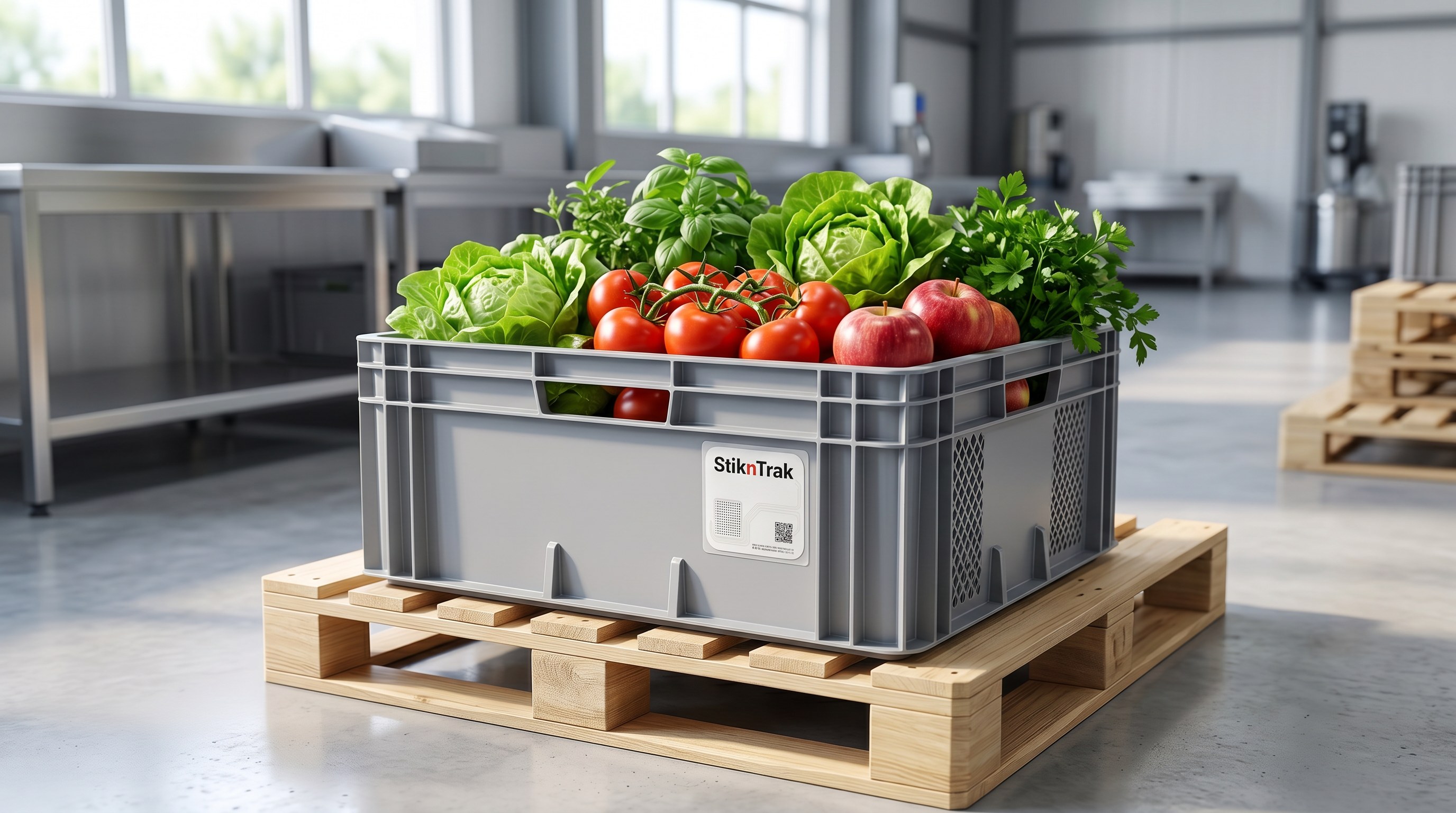

StiknTrak SNT-UF101 paper tag adhered to a grey returnable transport item filled with fresh produce on a wooden pallet in a cold-chain packhouse — Fresh produce in returnable totes

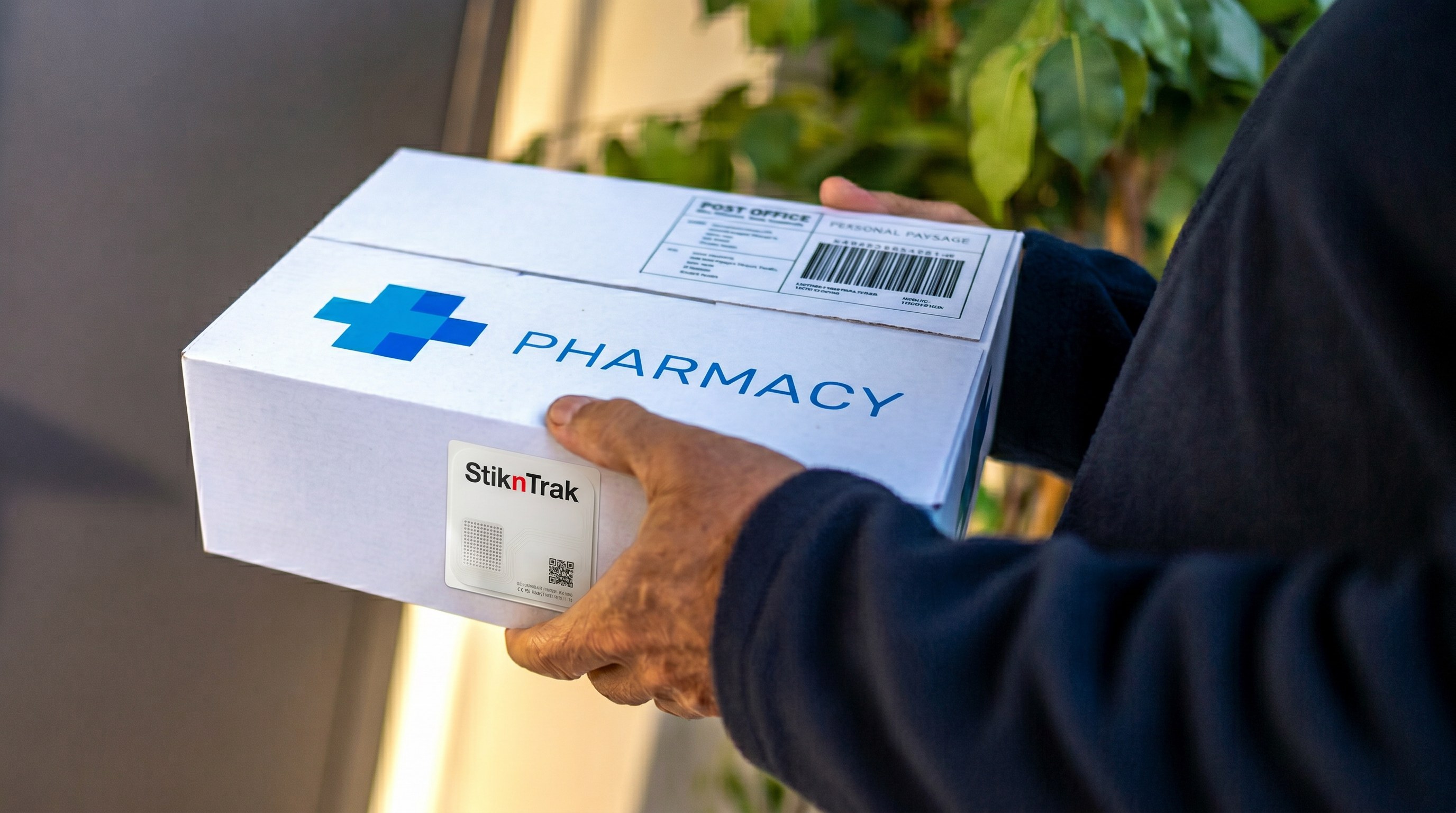

StiknTrak SNT-UF101 paper tag adhered to a white pharmacy delivery box being handed to a customer by a courier — Pharmacy & last-mile parcels

Inside the label

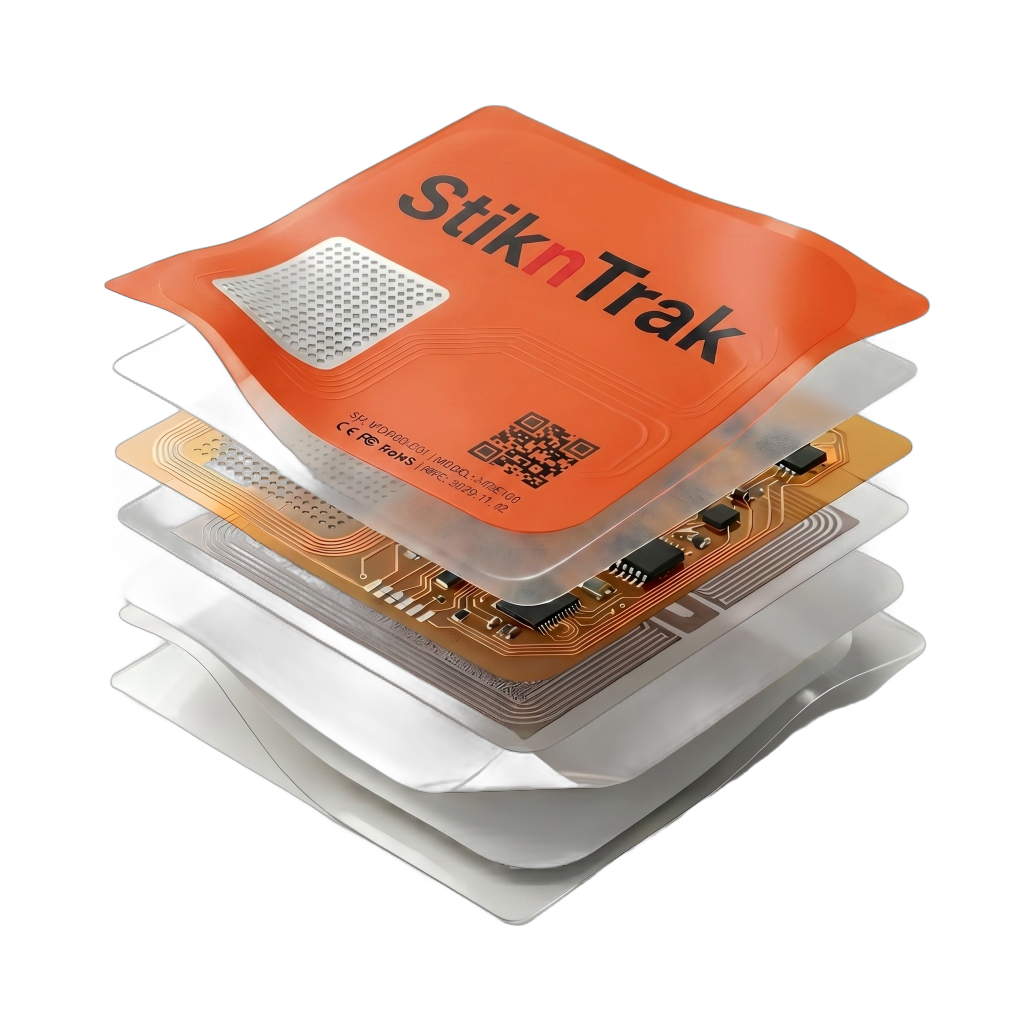

SNT-UF101 exploded view showing the orange PET front cover, copper flexible PCB with RFID coil and components, and adhesive backing layers — Layered construction

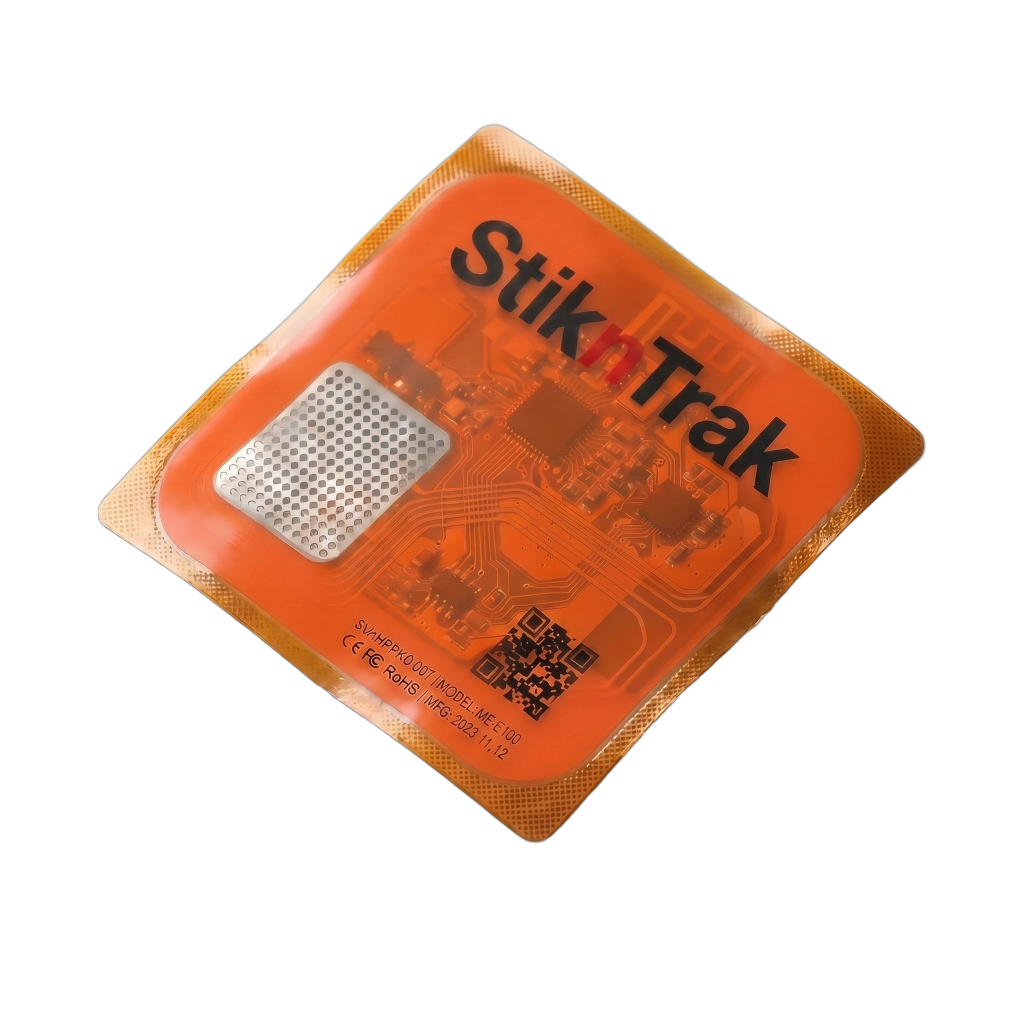

SNT-UF101 with orange PET cover showing the BLE module, RFID antenna, and circuit traces visible through the label — See through the label

General specifications

Model: SNT-UF101 (UT1 form factor)
Bluetooth: BLE 5.0 · BLE 5.3 compatible
Dimensions: 36.3 × 58.0 × 2.3 mm
Weight: 5 g
Material: PVC (environmentally friendly)
Colour: Custom
Bluetooth range: 100 m (open area)
Battery: Environmentally friendly zinc-manganese coated disposable paper battery · 45 mAh · 1.5 V
Battery life: 12 months (default settings)
Operating temperature: −25 to +50 °C
Installation: Sticker (peel-and-place adhesive)

Why ultra-thin

Flexible & ultra-thin: 2.3 mm flat construction conforms to cartons, folders and pharma shippers without adding bulk
Eco-friendly battery: Zinc-based paper cell — no lithium, recyclable end-of-life with the host packaging
Cost-effective: Low per-unit cost makes per-shipment or per-asset deployment economically viable at scale
No infrastructure: No SIM, no GPS, no gateway required — relayed opportunistically by phones, vehicles and fixed StiknTrak gateways
Power-off control: Conductive adhesive lets handlers disconnect the battery between active legs to conserve life

Request datasheet Inquire

SNT-FM36

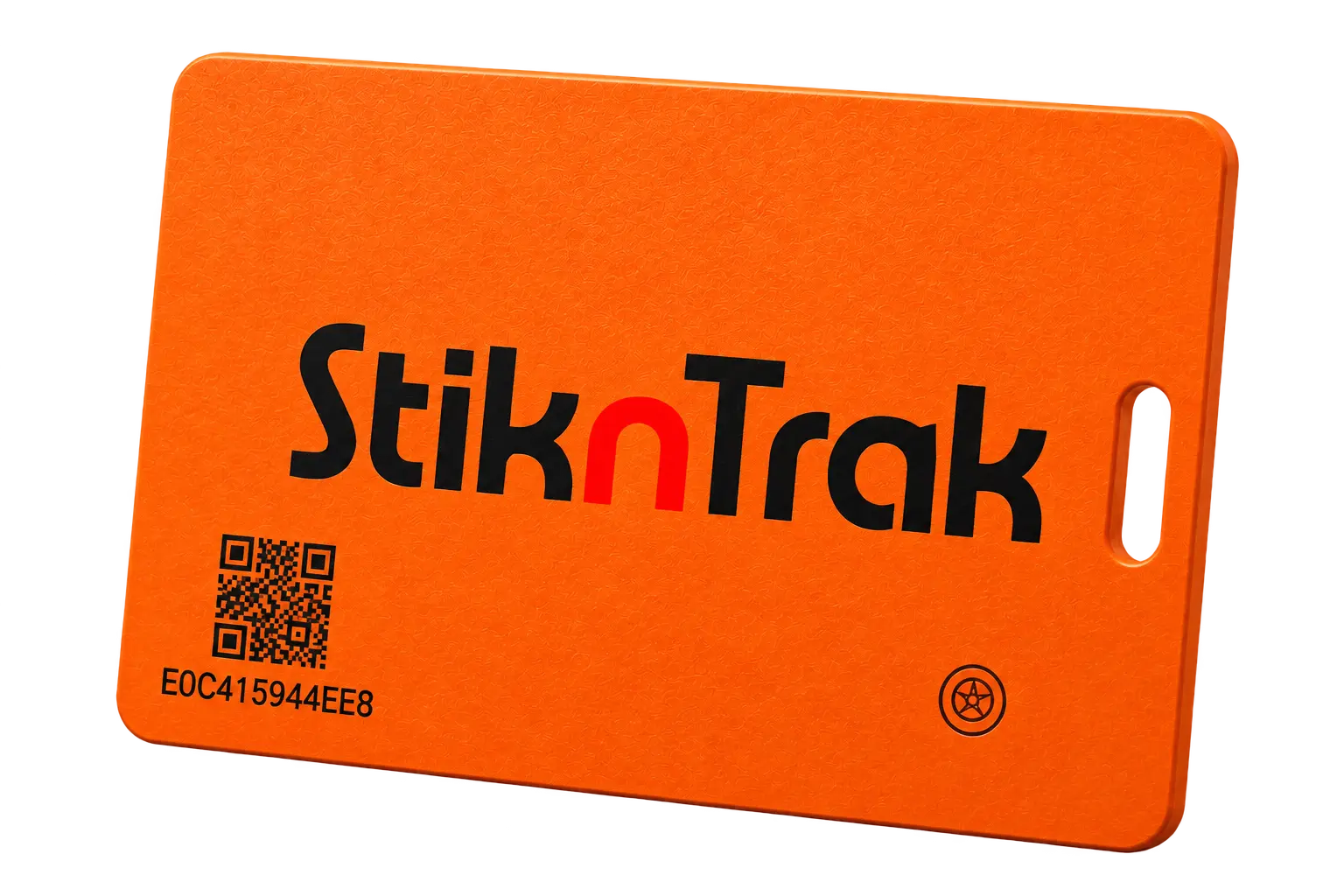

Orange StiknTrak SNT-FM36 ruggedised long-life credit-card-sized asset tracker

SNT-FM36

StiknTrak Ruggedised Long-Life Tracker

Ruggedised · Long Life — credit-card size, three-year battery, near real-time location

A durable, long-life tracking device designed for pallets, pharmaceutical shippers, returnable transport items and other high-value logistics assets. Its slim credit-card-sized format provides a strong physical presence without adding unnecessary bulk. The SNT-FM36 reports through the StiknTrak network to provide near real-time location visibility and a continuous journey record in SAVP.

SNT-FM36 in action

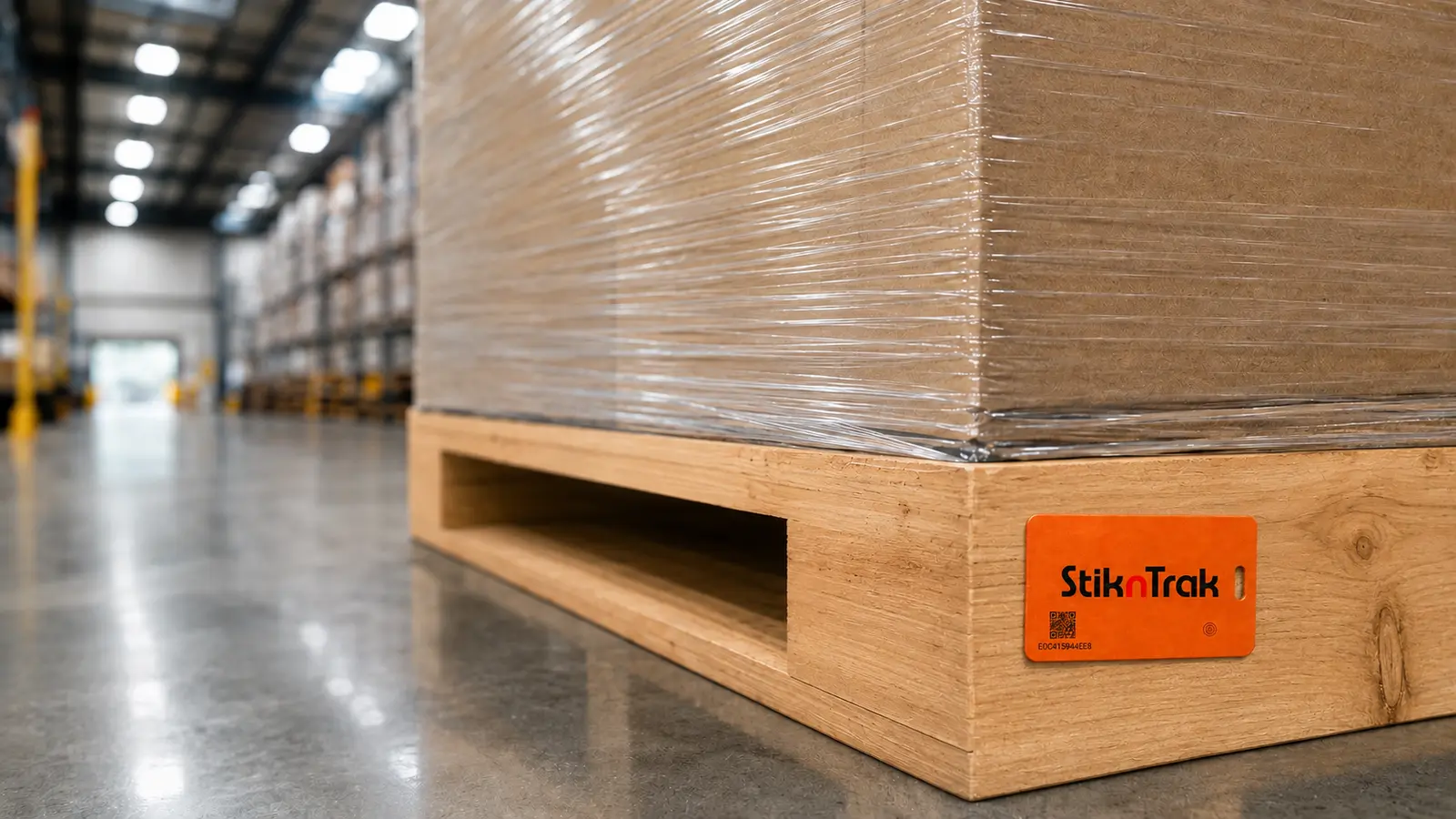

Illustrative application showing the orange StiknTrak SNT-FM36 mounted flush to a flat wooden pallet bearer in a warehouse — Pallet visibility · Illustrative

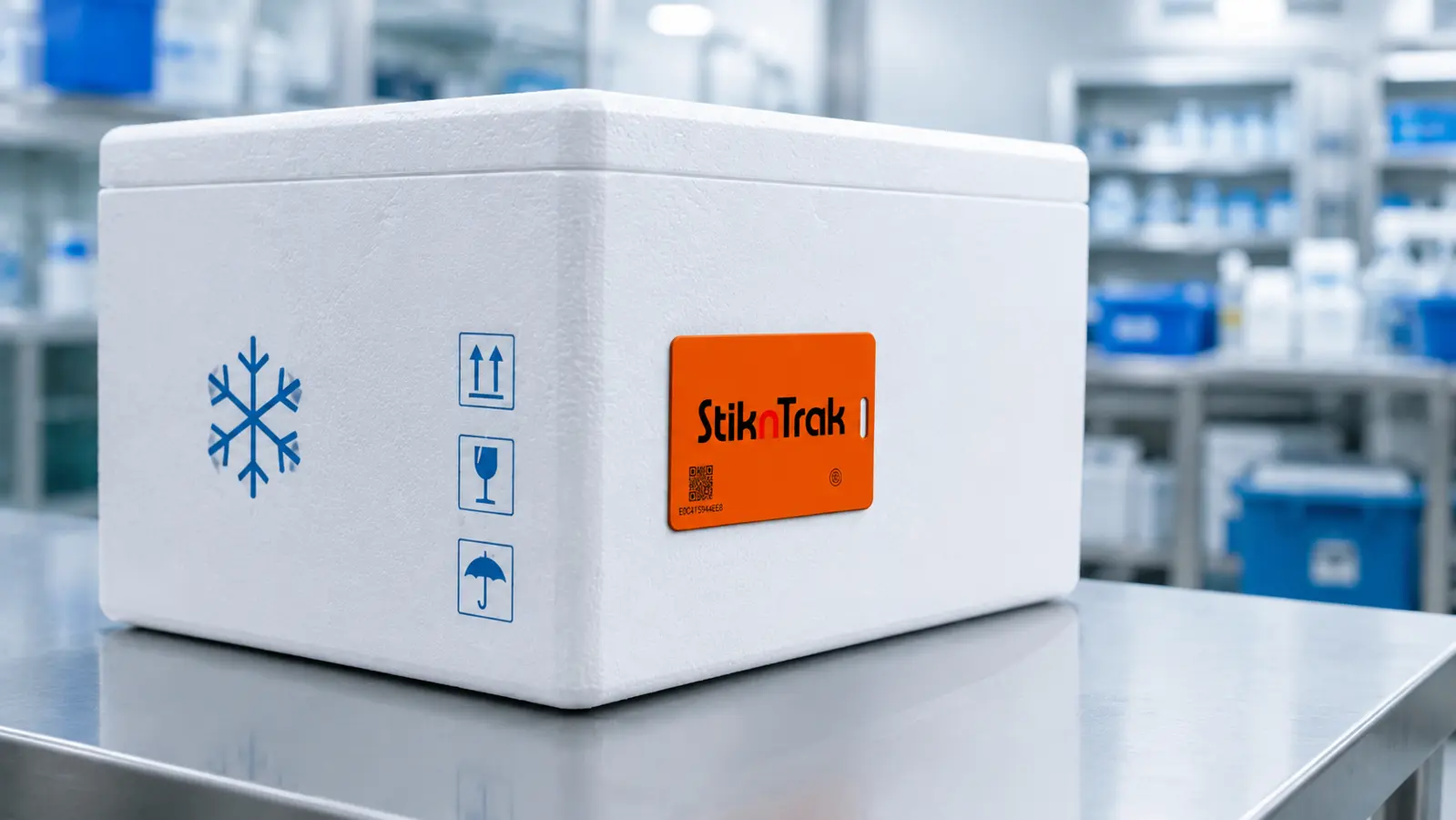

Illustrative application showing the orange StiknTrak SNT-FM36 attached to a white insulated pharmaceutical shipment box — Pharmaceutical logistics · Illustrative

General specifications

Model: SNT-FM36
Description: Ruggedised · Long Life
Form factor: Credit-card size
Battery life: Up to 3 years, depending on reporting interval and operating conditions
Location visibility: Near real-time through the StiknTrak network
Platform: SAVP location history, journey visibility and fleet management
Typical applications: Pallets, pharmaceutical shippers, returnable transport items and high-value assets

Built for extended deployments

Long operating life: Three-year battery design reduces replacement and recommissioning across long asset cycles
Practical form factor: Credit-card-sized enclosure is easy to identify, scan and attach to logistics assets
Operational visibility: Near real-time location supports asset recovery, journey monitoring and exception management

Request datasheet Discuss a deployment

SNT-LOC

Orange StiknTrak SNT-LOC coin-sized BLE asset tag with QR code

SNT-LOC

StiknTrak Asset Locator

Reusable · LED and optional buzzer for last-metre location

SNT-LOC is a compact, coin-sized BLE asset tag for quickly finding equipment, pallets, crates and other valuable items within a facility or local area. The app guides the operator toward the selected tag, then activates its high-brightness LED—and optional buzzer—for precise visual and audible identification. Its high-performance antenna is designed for strong, interference-resistant broadcasting indoors and outdoors. An optional temperature logger adds environmental monitoring for cold-chain assets and climate-sensitive medical supplies.

Product images

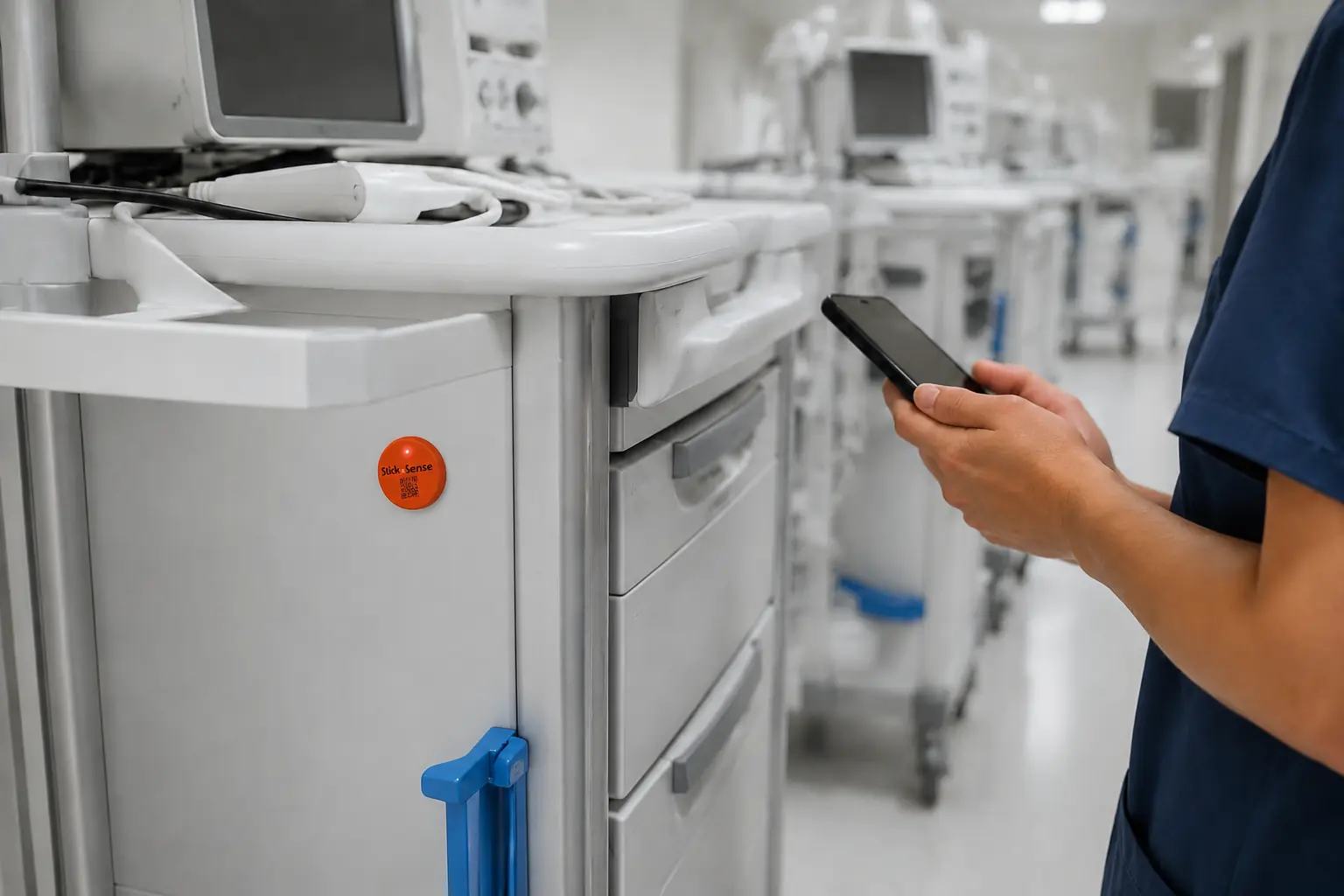

SNT-LOC LED tag helping a healthcare worker locate hospital equipment — Healthcare equipment

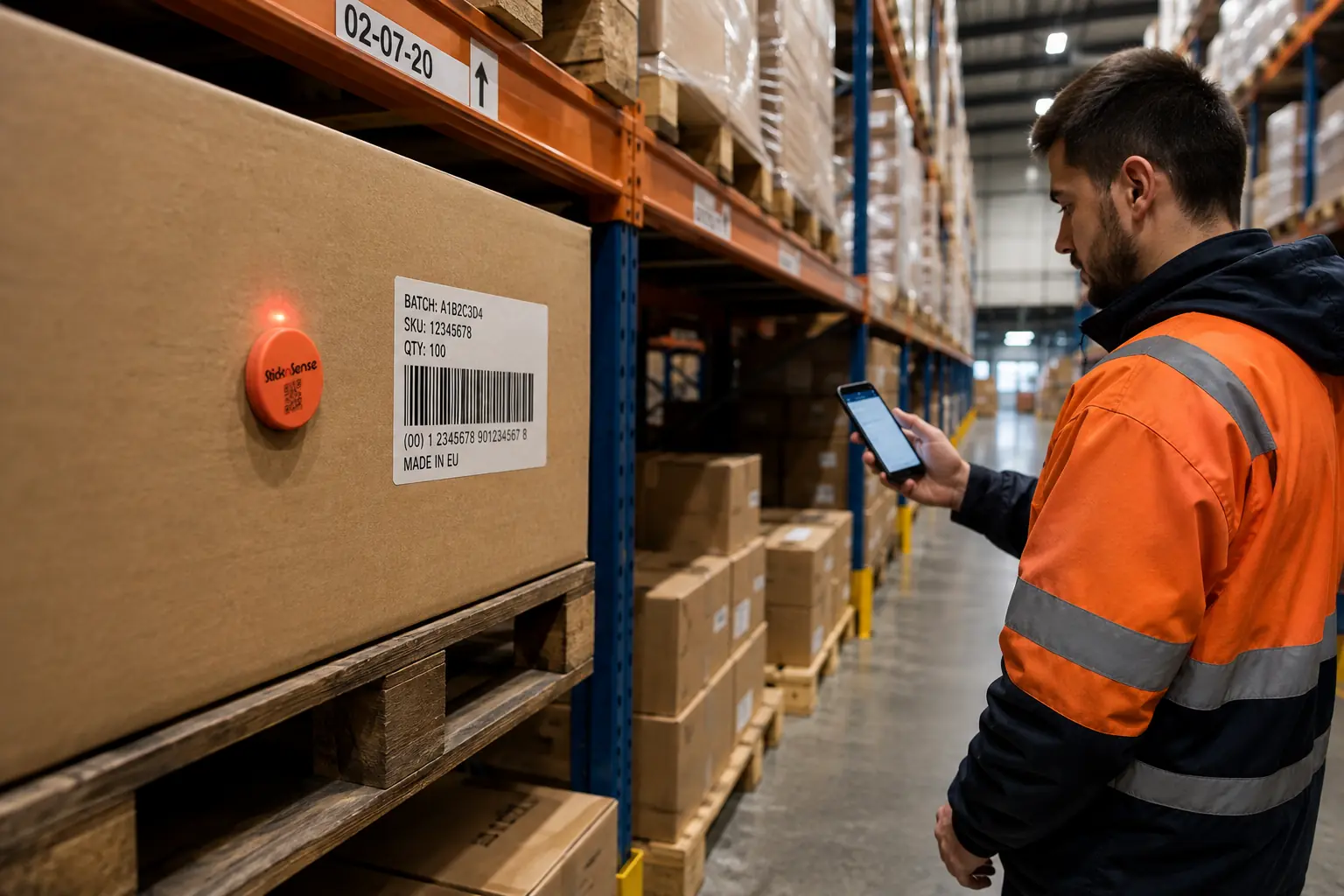

SNT-LOC LED tag identifying a carton in a warehouse — Warehouse inventory

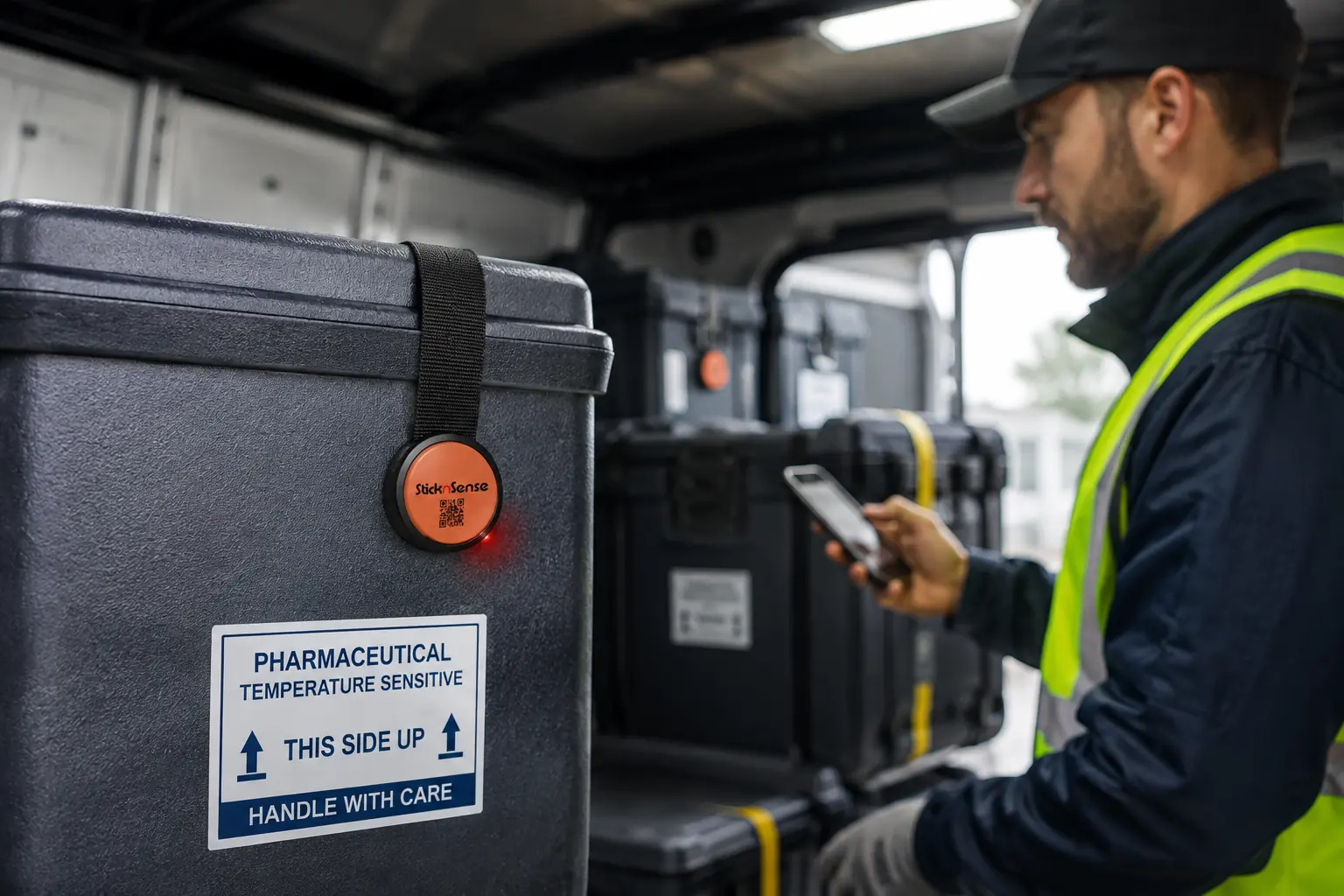

SNT-LOC LED tag identifying a reusable pharmaceutical logistics case — Reusable logistics cases

Physical & connectivity

Bluetooth: BLE 5.0
Broadcast range: Up to 230 m in unobstructed open space¹
Dimensions: 30 mm diameter × 8 mm
Weight: 6.2 g including battery
Certifications: FCC · CE · REACH · RoHS

Sensing, storage & power

Location cues: High-brightness LED · optional buzzer
Sensors: 3-axis accelerometer · optional temperature logger
Battery: Replaceable CR2032 · approximately 9 months at default settings²
Operating range: −20 °C to +60 °C

¹ Actual range varies with building materials, shelving, interference and device placement. ² Default brochure settings: one active slot, 1,000 ms advertising interval, 0 dBm transmit power and 1-second sensor sampling.

Request datasheet Inquire

Need help choosing?

Tell us about your asset, environment and battery-life targets — we'll match the right device.

Get sizing advice
