One way · biofuel-powered location and temperature monitoring
A compact, one-way label combining ONiO ultra-low-power electronics, BeFC biofuel-cell power and Ambient IoT firmware. Records temperature locally and provides observed location updates through compatible infrastructure. Designed to travel with fresh produce from packing shed to destination.
Product views

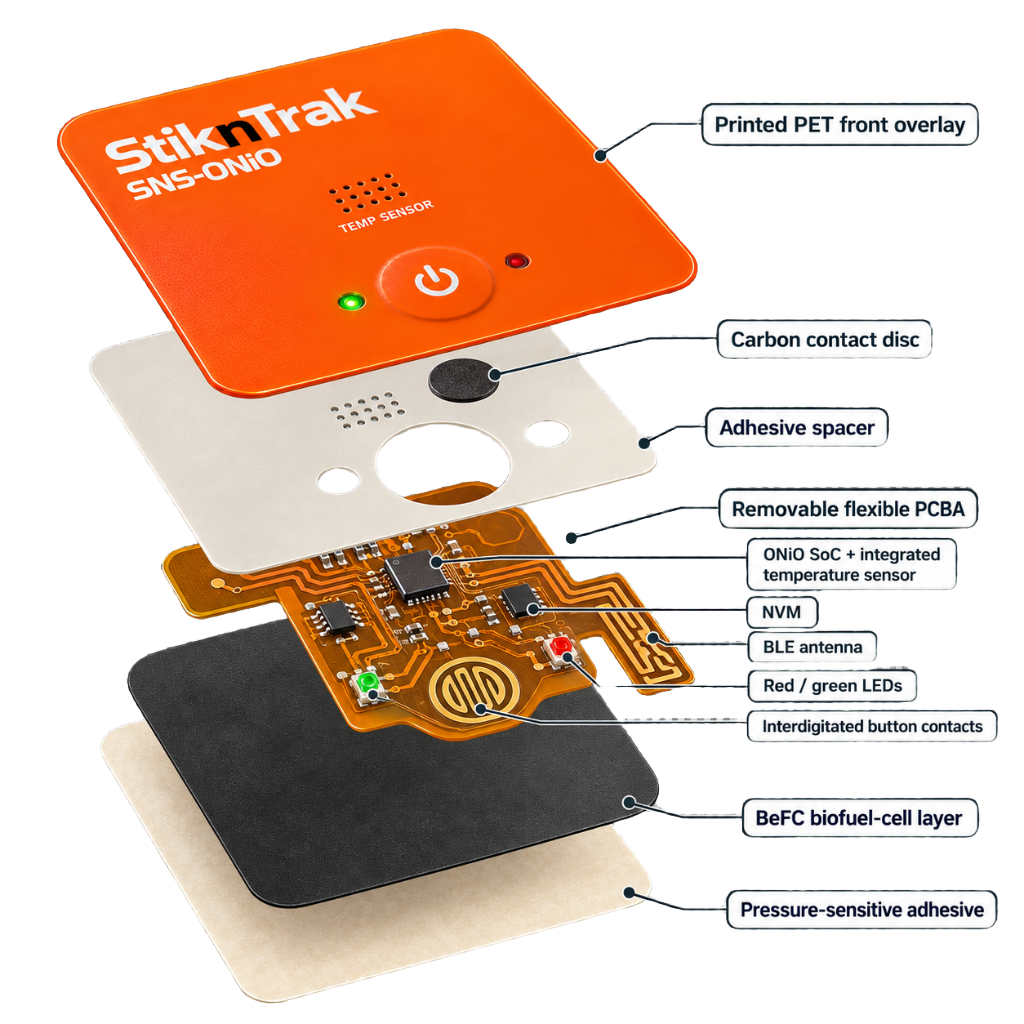

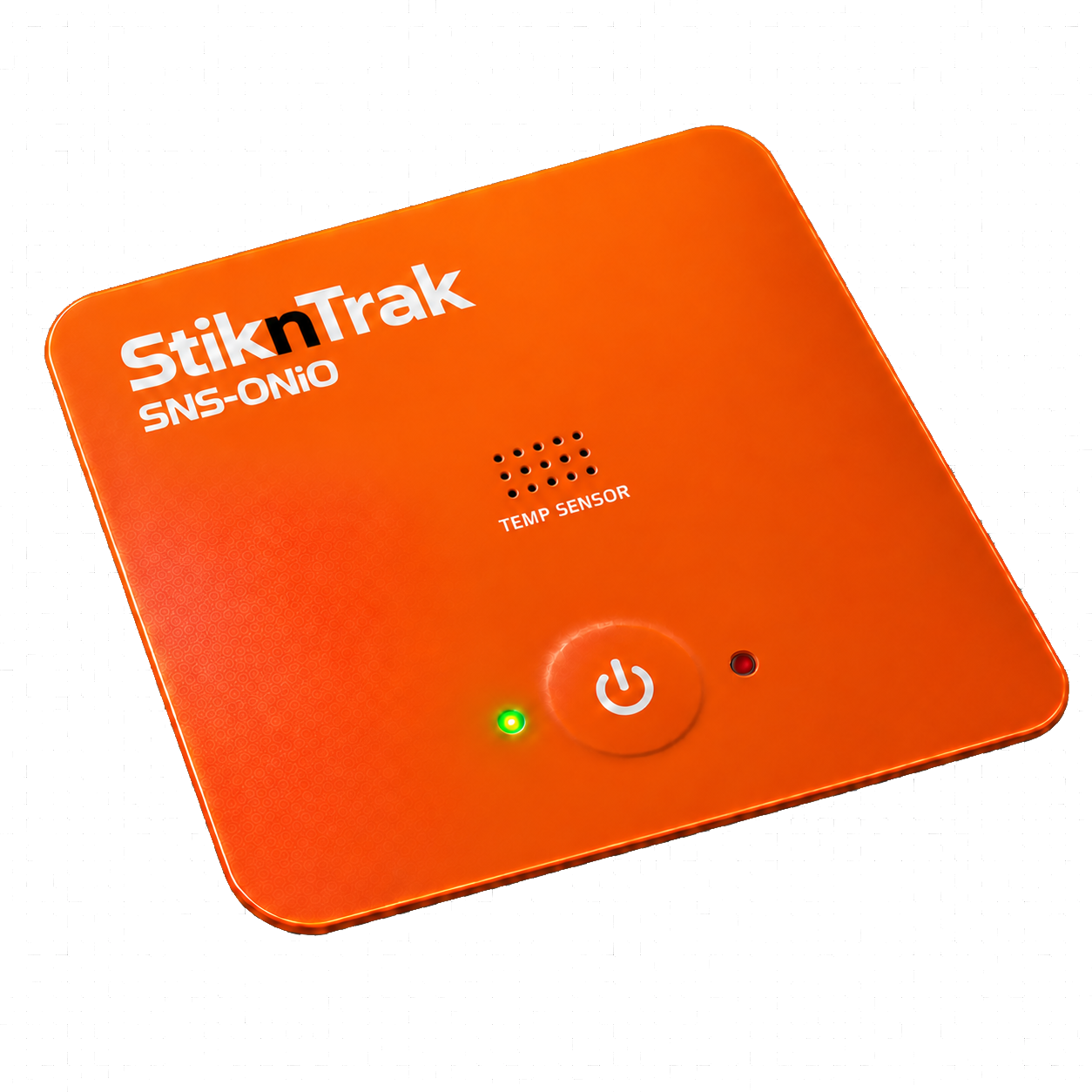

Sealed labelExploded view
Physical & connectivity
Model
SNS-ONiO
Target dimensions
70 × 70 × 2 mm
Deployment
Single-use, one-way monitoring
Processor
ONiO ultra-low-power SoC
Communications
Hybrid BLE: low-power advertising and managed data-retrieval sessions
Location
Observed location supplied through compatible external infrastructure
Device hardware
No GPS chip, SIM card or cellular modem on the label
Mobile access
Designed for QR access without installing a custom mobile app
Sensing, storage & power
Temperature record
Locally stored sensing history
Memory
Non-volatile storage retains recorded data when power is unavailable
Firmware
Proprietary Ambient IoT sensing and communications firmware
Power
Two-cell BeFC biofuel power source
Operating life
Up to six weeks indicated by bench testing¹
¹ Bench testing indicates up to six weeks using a two-cell BeFC biofuel power source. Duration depends on operating conditions and configuration.
From dispatch to delivery — visibility at carton and shipment level.
One wayNo return logistics
70 × 70 × 2 mmTarget label dimensions
Biofuel poweredNo conventional lithium battery
Up to 6 weeks*Indicated by bench testing
Made for the produce journey
A small label. More journeys made visible.
Temperature exposure and delays can affect quality, shelf life and commercial value. SNS-ONiO is designed to make monitoring practical across packing sheds, carriers, distributors and receiving sites.
One journey. No returns.
The single-use label travels with the produce. No device recovery, recharging or return programme to organise.
History stays with the label.
Temperature readings are stored locally between collection opportunities. Non-volatile memory retains recorded data when power is unavailable.
Designed for wider use.
Ultra-low-power electronics and biofuel-cell power help minimise hardware and deployment costs for carton and shipment monitoring.
ONiO, BeFC and Ambient IoT bring together processing, power and shipment intelligence within a compact adhesive label.
The bio-based power source offers an alternative to conventional battery-powered trackers. The environmental performance of the complete label depends on its materials and end-of-life handling.
Processing and sensing
ONiO’s ultra-low-power system-on-chip combines processing with integrated temperature sensing, reducing component count, cost and power consumption.

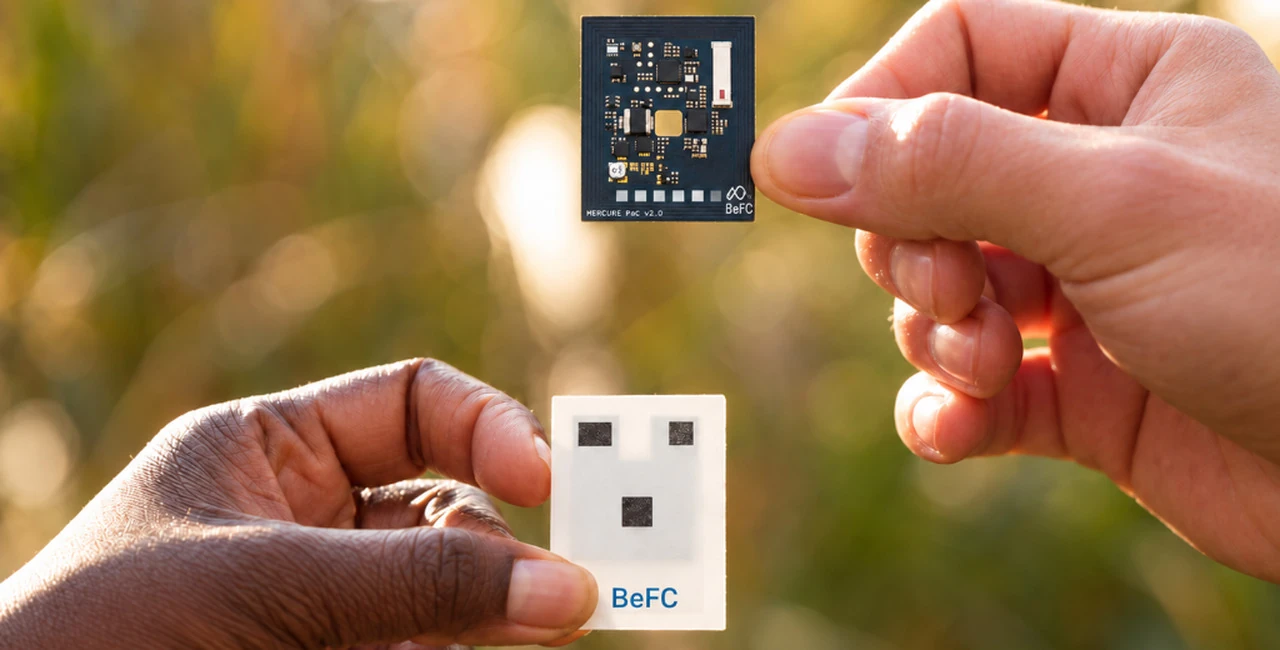

Thin biofuel-cell power
BeFC’s technology uses enzymes to convert chemical energy from bio-based fuel into electrical power. A two-cell power source supports the single-use label.
Firmware and visibility
Ambient IoT manages temperature recording, local storage and Hybrid BLE communications. SAVP brings temperature history and available location observations together.
Label construction
Compact by design.
Simple deployment

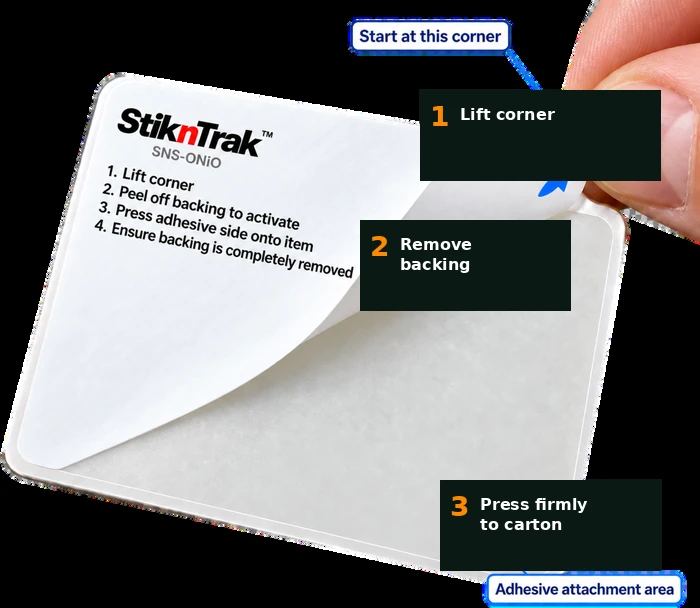

Peel. Attach. Monitor.
Activate
Lift the marked corner and completely remove the backing to activate the label.
Attach
Press firmly onto clean, dry carton packaging. Keep the front sensor area and QR code unobstructed.
Monitor
The label records temperature locally throughout the journey.
Hybrid BLE communications
Scan the label. See the shipment history.
Scan the QR code with an iPhone or Android phone to open the shipment record without downloading an application. Review recorded temperature readings, available location history and temperature exceptions.
Record
Discover
Collect
Synchronise
View history
QR opens the record.
Use the label’s QR code to access shipment information at receiving, handover or inspection.
BLE collects the readings.
Hybrid BLE combines low-power discovery with authenticated collection of readings stored on the label. Those collection opportunities keep the shipment record updated.
SNS-ONiO evaluation
Make your next produce journey visible.
Contact Tony Raftis at Ambient IoT to discuss an SNS-ONiO evaluation.
